PROTOCOL DIRECTOR DRONE

Foldable Drone with a Live Streaming Camera

Brand: Protocol
Launch: 2015

“Create cinematic content”

Live streaming with three cameras and audio makes it easy to capture dynamic videos without extra gear or editing. The folding design, travel bag, 2.4G remote, and altitude sensor provide a compact and portable solution that is simple to fly and film anywhere.

A drone flying above a tropical beach with white sand, palm trees, and a resort, near the ocean water.

BRIEF

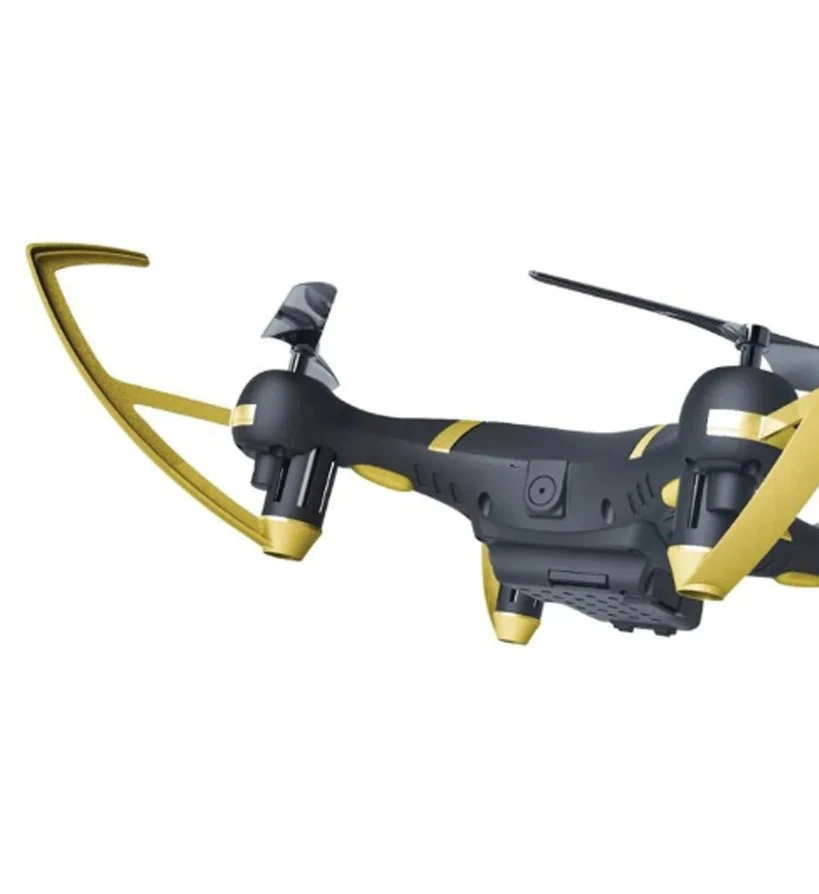

Black and yellow quadcopter drone with a camera on the bottom, standing out against a white background.

“BRAND STYLE REFRESH”
Transformed the drone’s existing chassis into a clean, modern, and brand-forward design—compact, foldable, and sleek, moving away from the generic off-the-shelf look.

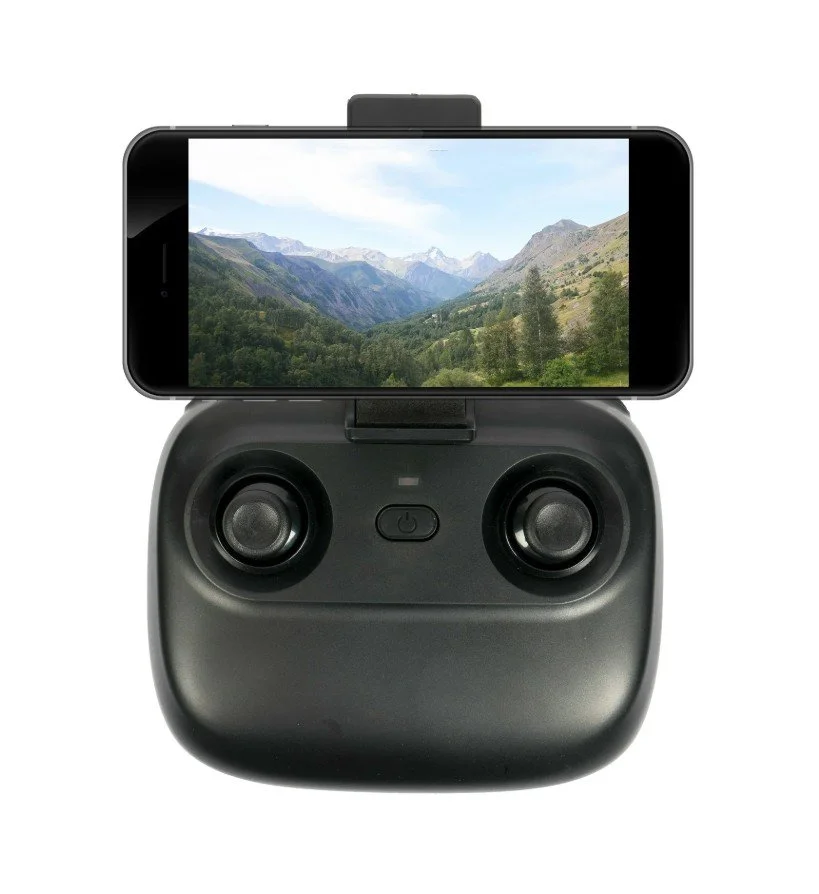

A drone controller with a smartphone mounted on top, displaying a mountain landscape scene.

“INTEGRAED REMOTE EXPERIENCE”
Utilized the existing remote control while adding a smartphone mount, ensuring seamless app integration and live-stream functionality.

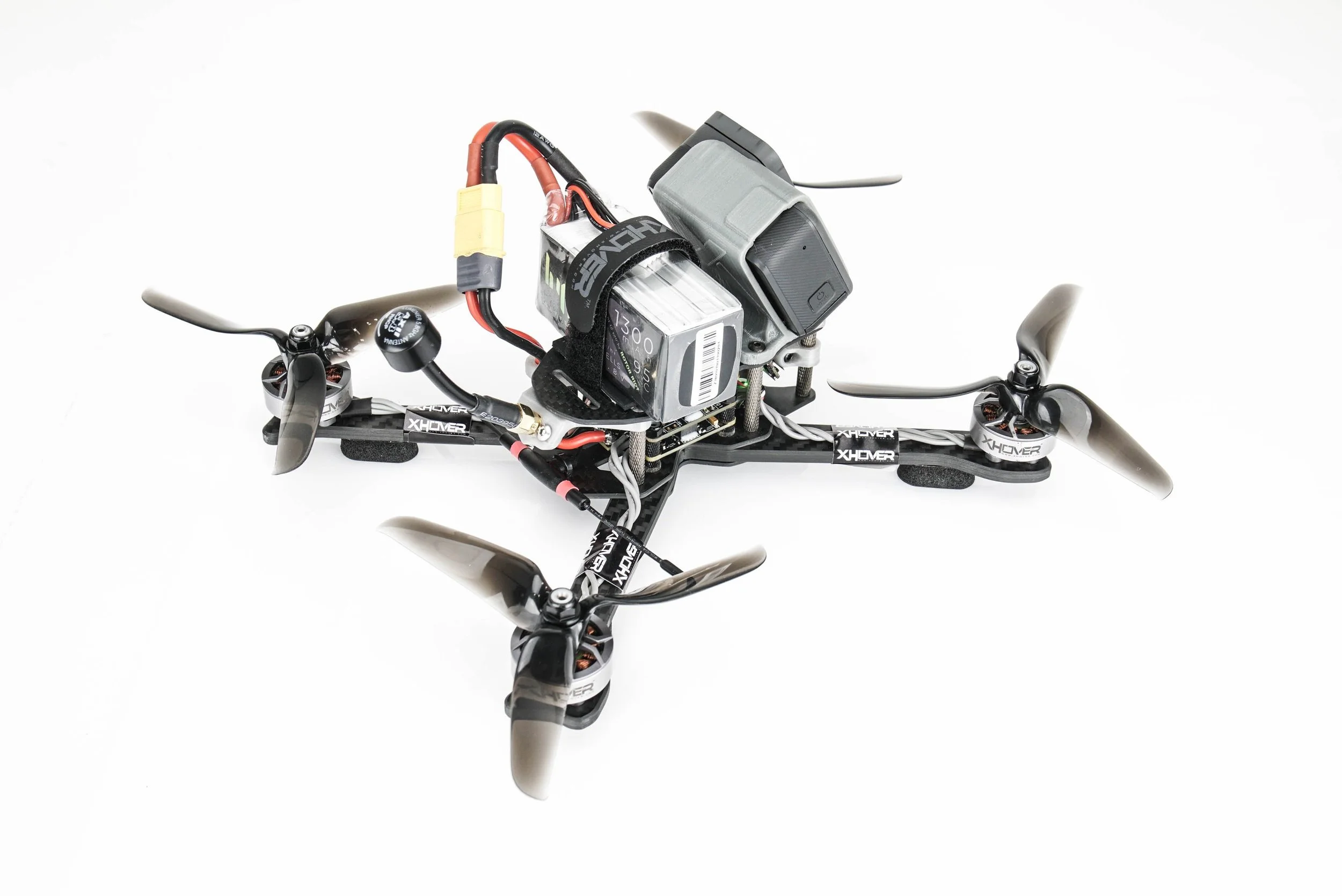

Close-up of a racing drone with four propellers on a white background, equipped with batteries, wires, and electronic components.

“COMPACT & FUNCTIONAL”
Design to accommodate foldable legs and propeller blades, creating a lightweight, portable drone that is easy to carry, fold/unfold intuitively, and maintain with swappable propellers and batteries.

SKETCHING

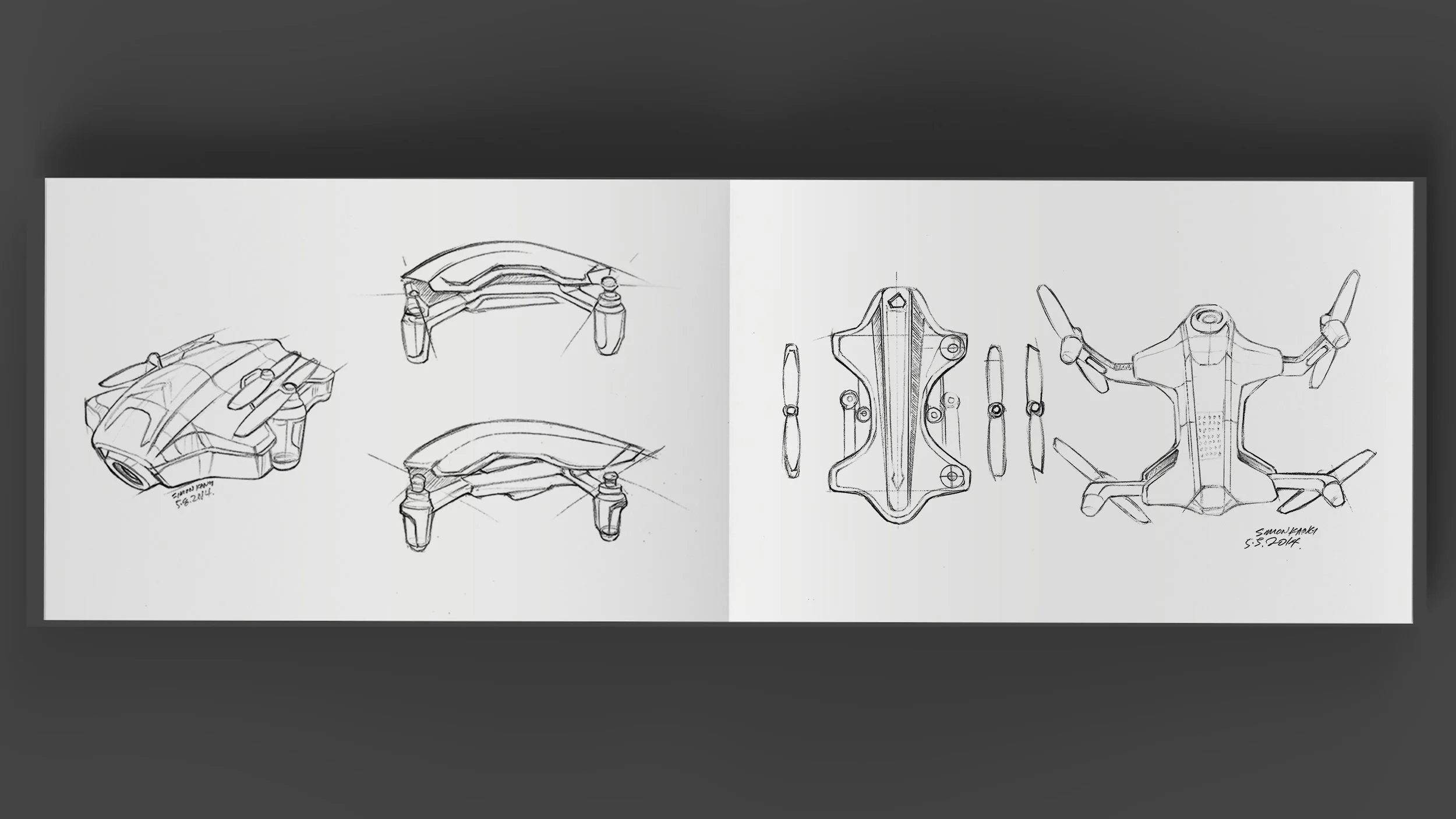

Sketches of a drone and drone components, including a top view, side view, propellers, and a chassis.

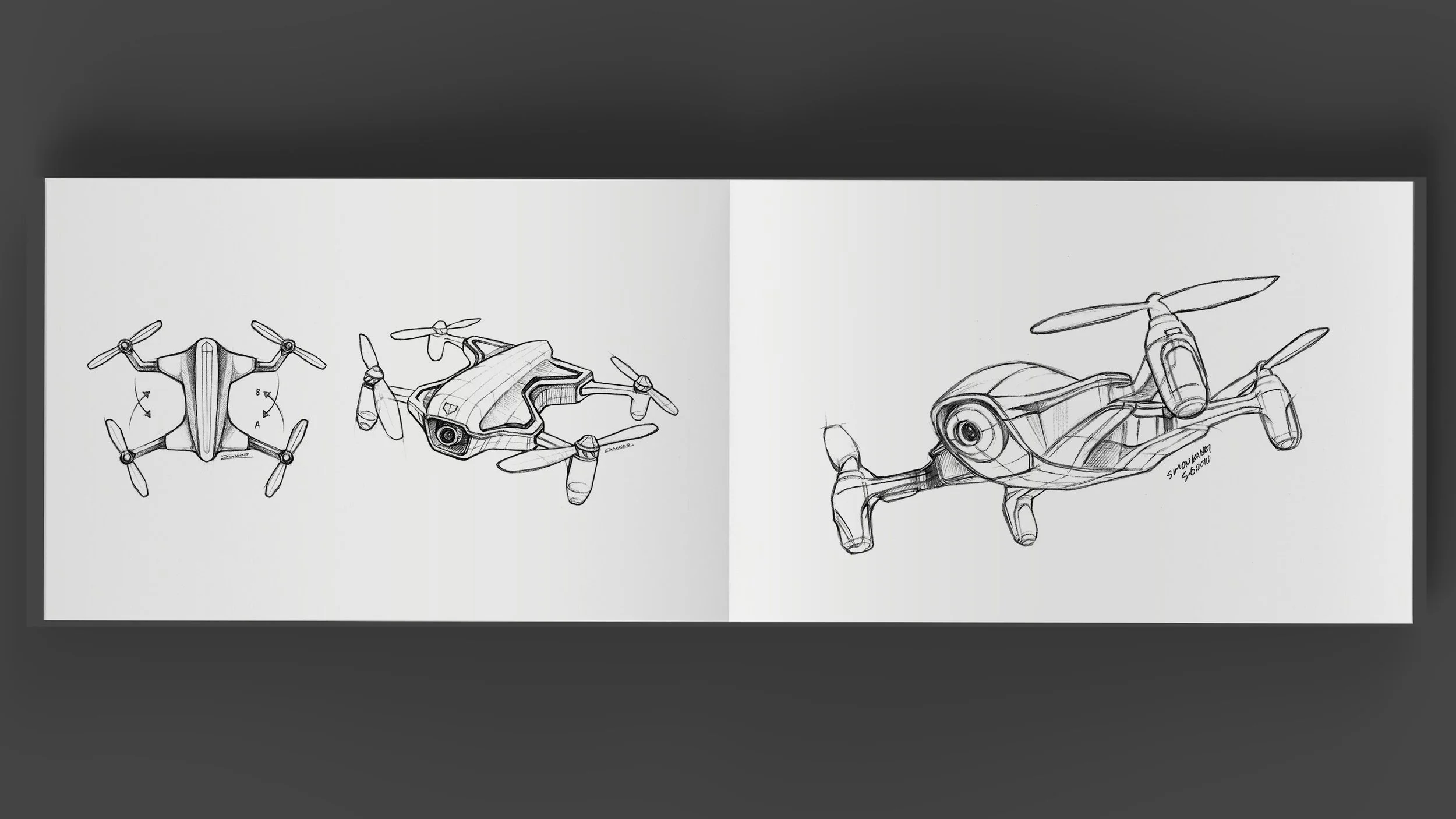

Sketches of a quadcopter drone with detailed views of its design from different angles.

SOLIDWORKS 3D CAD DEVELOPMENT

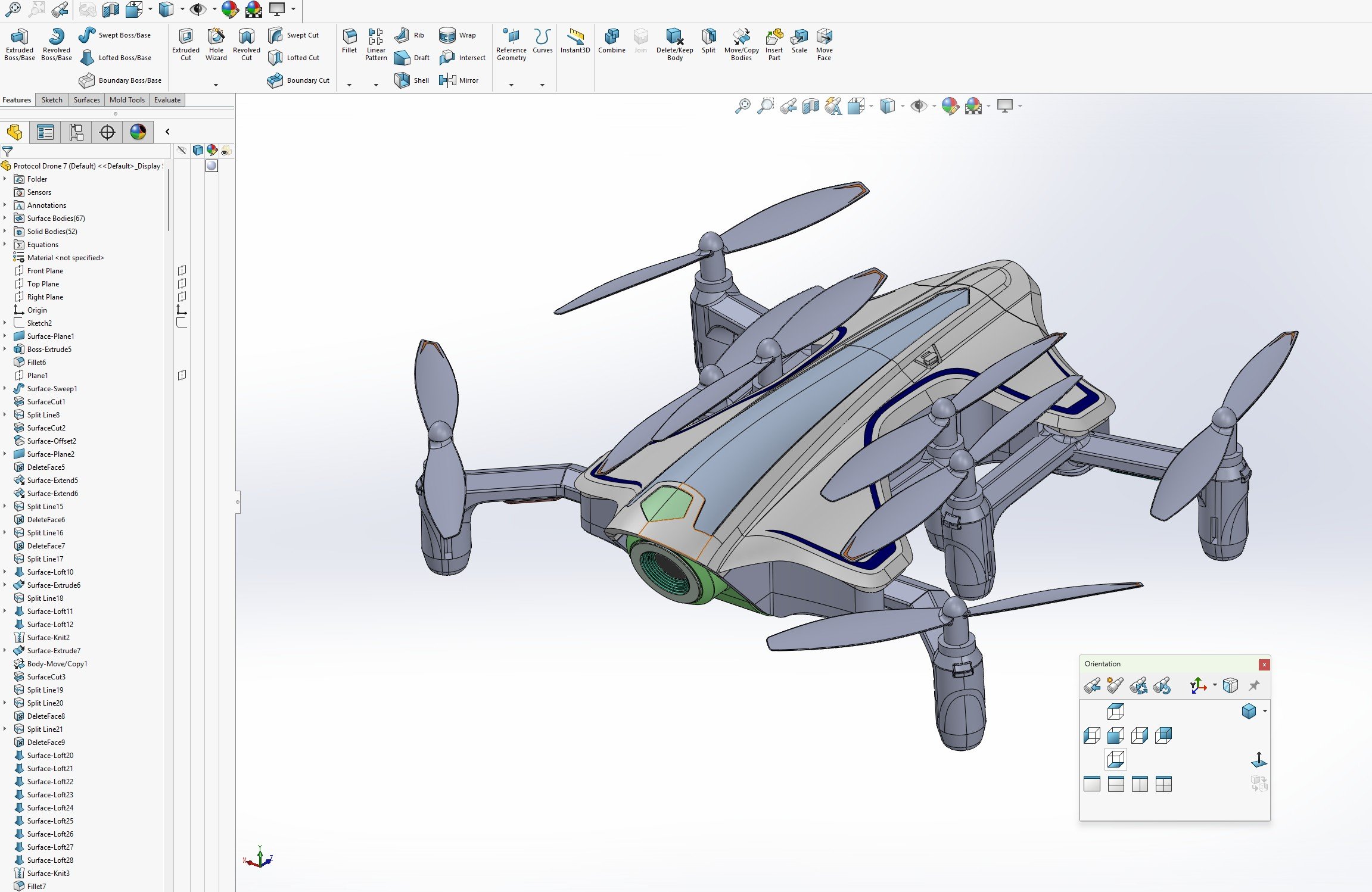

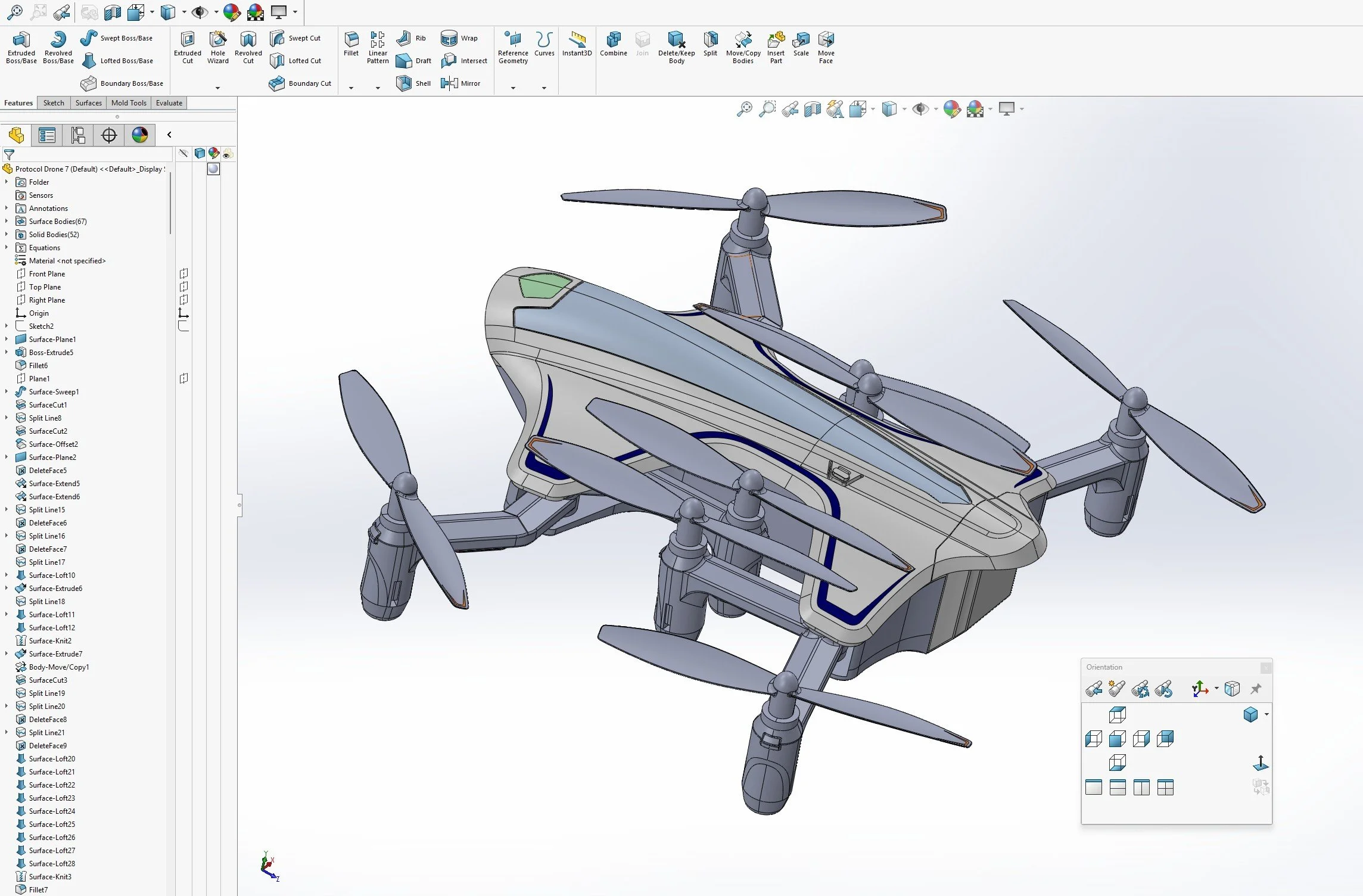

A 3D CAD design of a quadcopter drone displayed on a computer screen within a CAD software interface.
A 3D CAD model of a multi-rotor drone with a sleek, aerodynamic design, four propellers, and detailed structural components displayed in a CAD software interface.
A black and white striped drone with four propellers

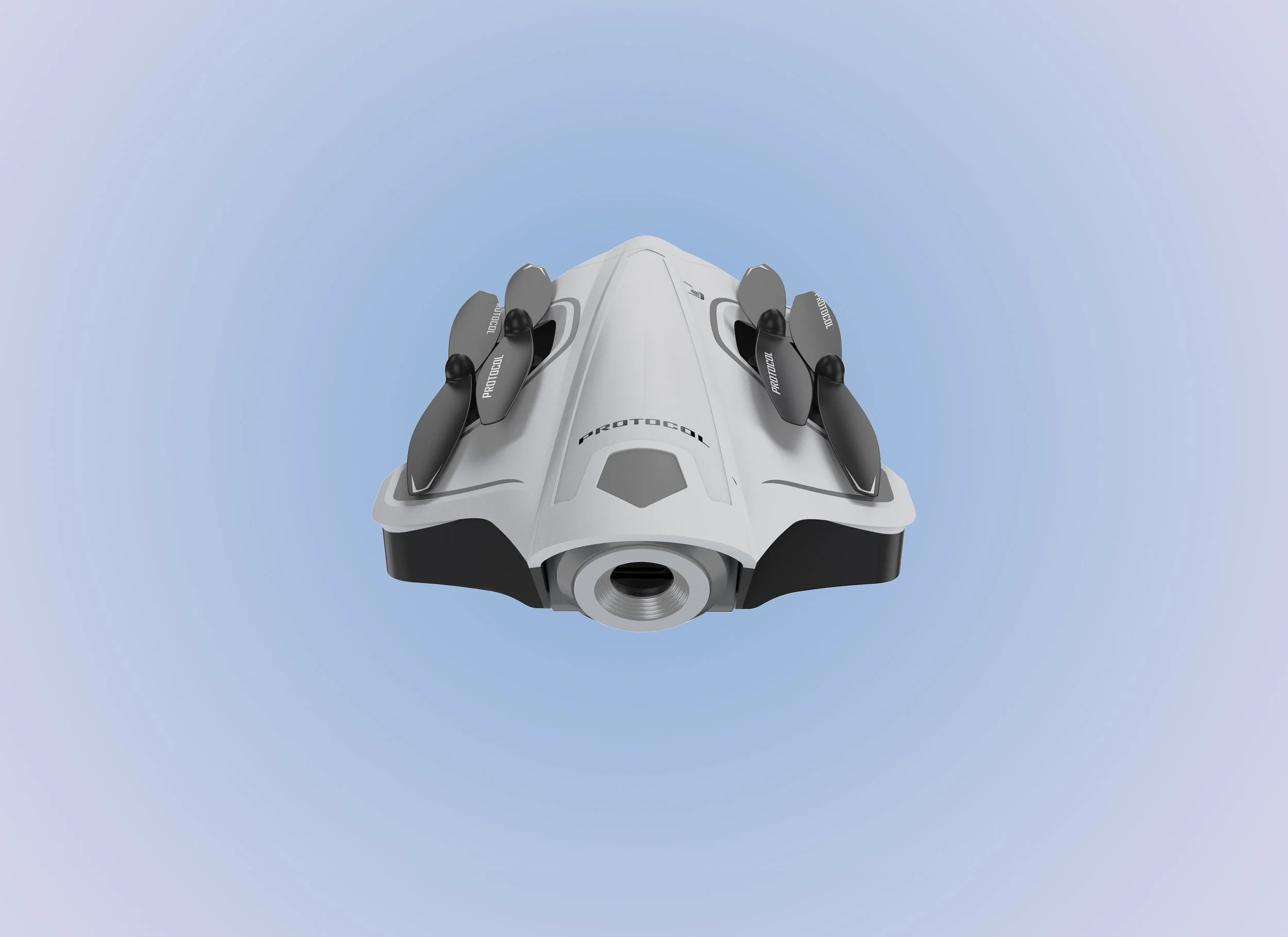

3D RENDERINGS

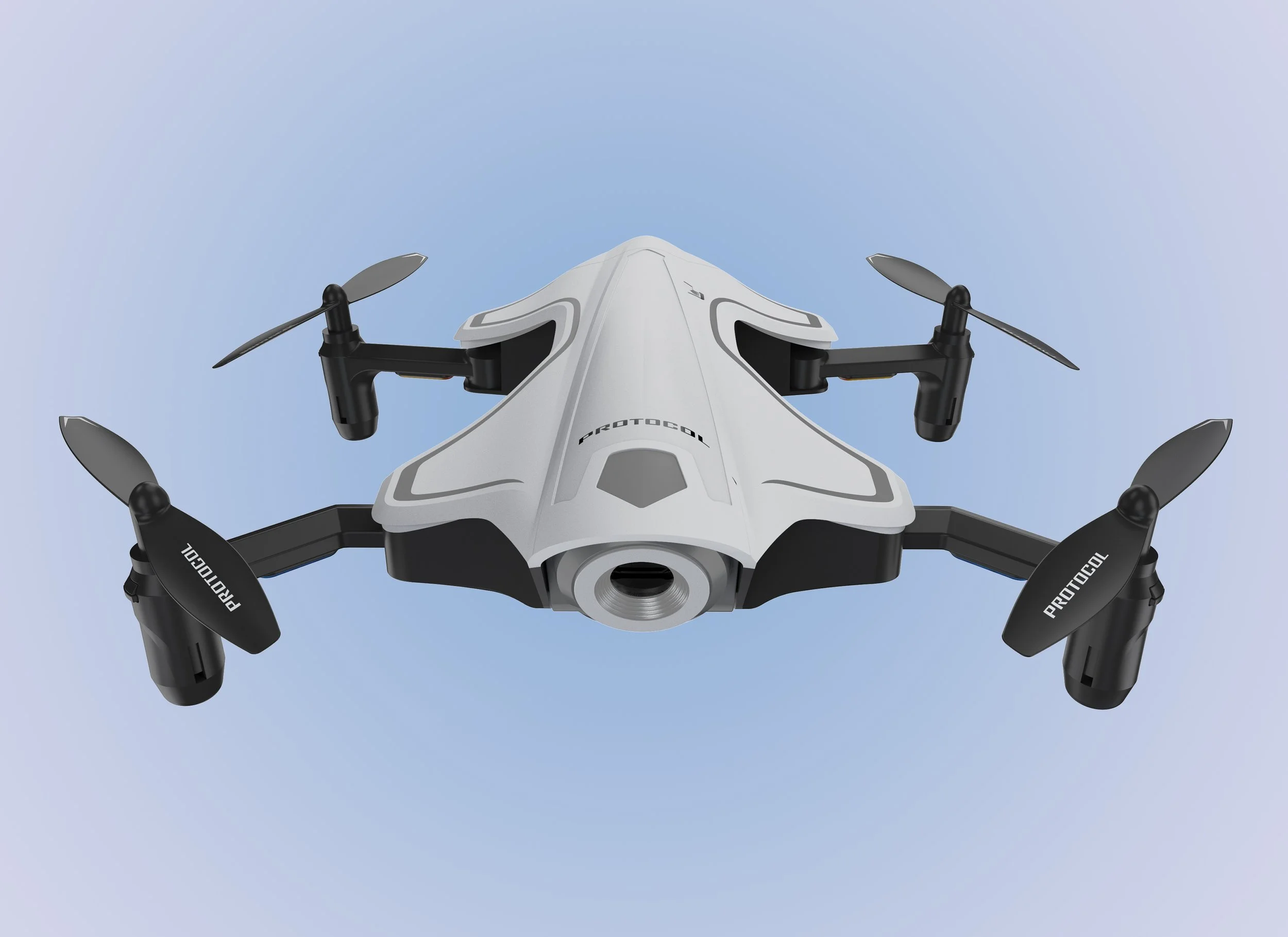

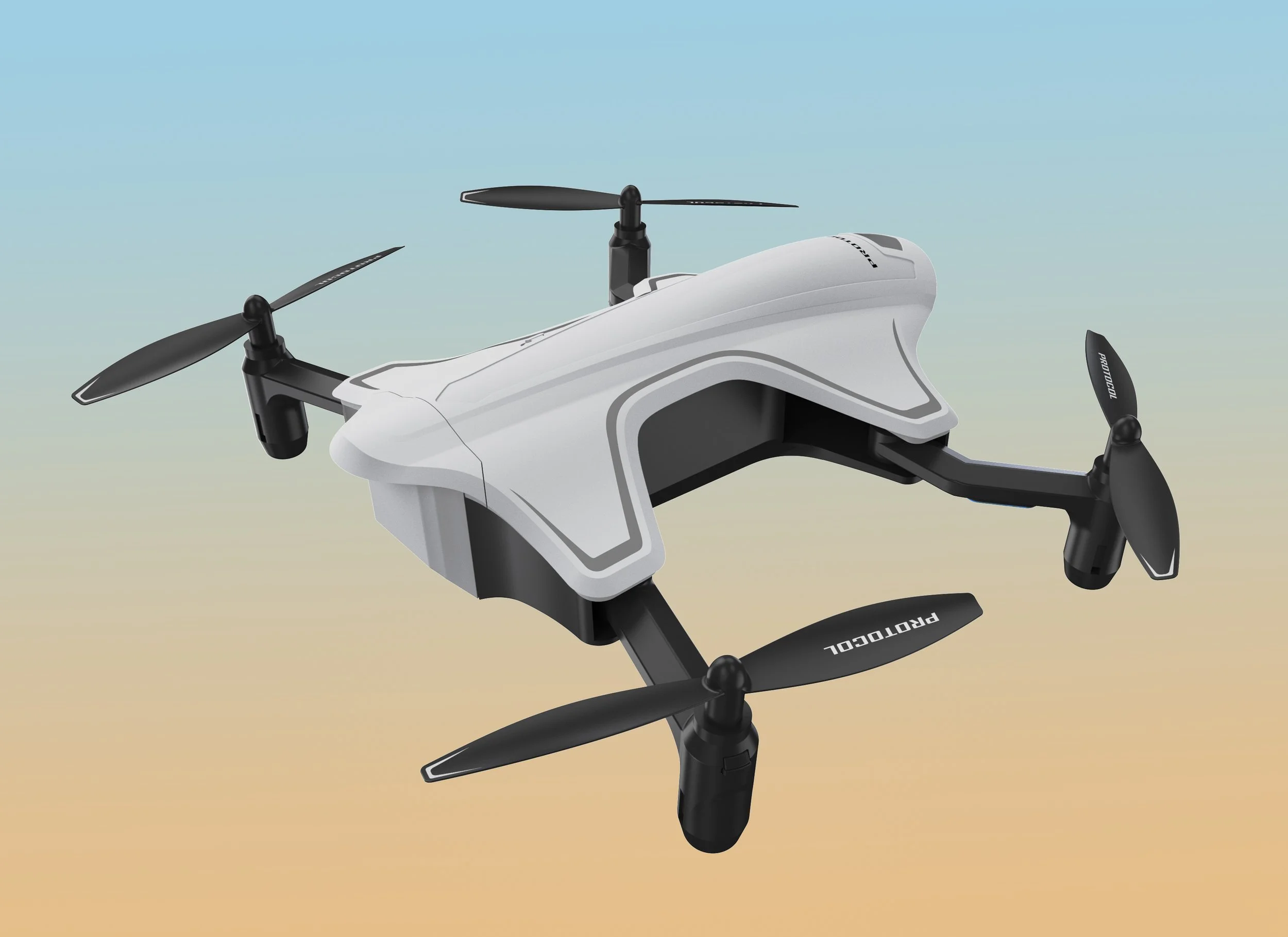

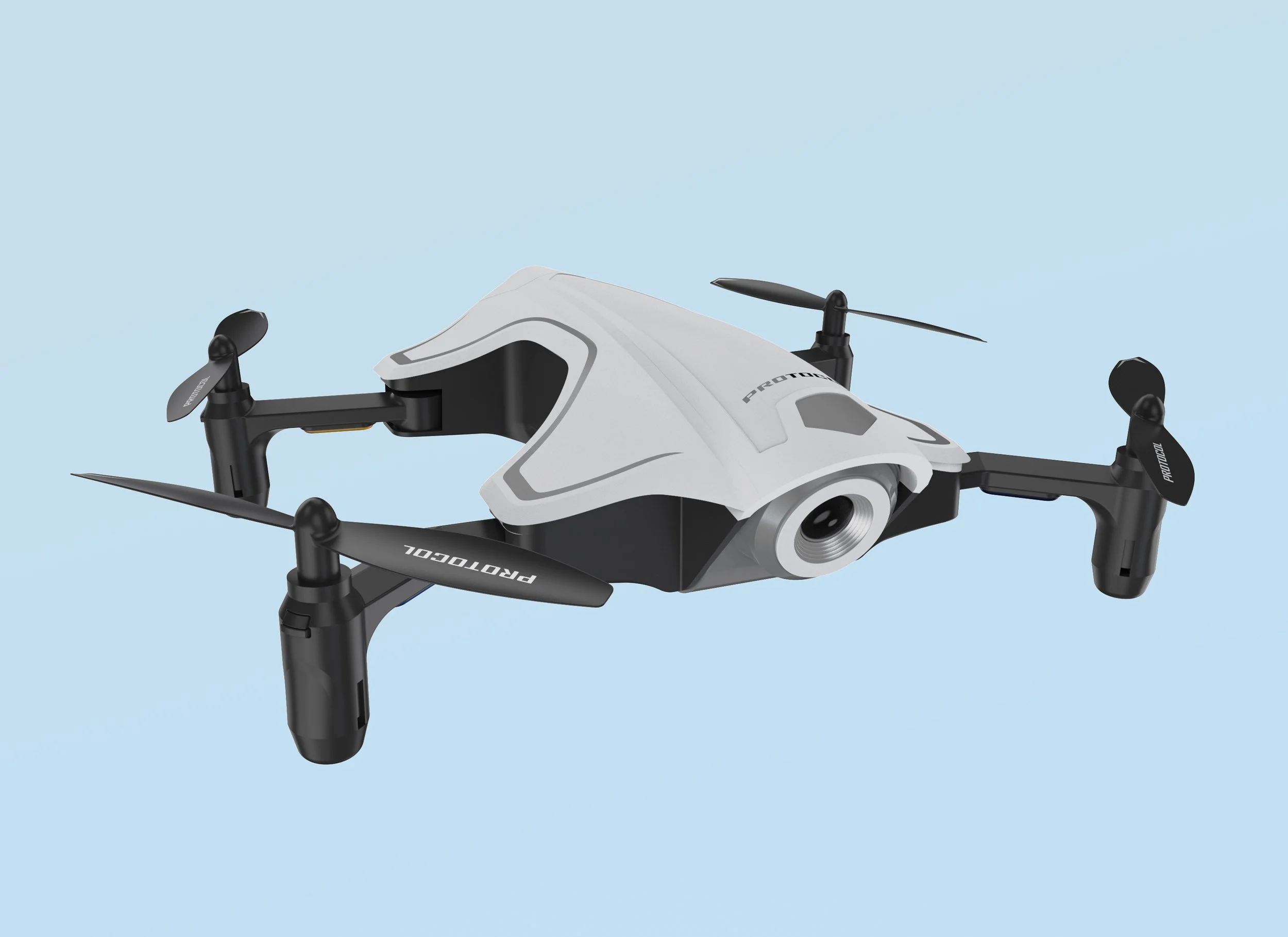

A white and black drone with four propellers against a light blue background.
A white quadcopter drone with four black propellers is flying in the sky.

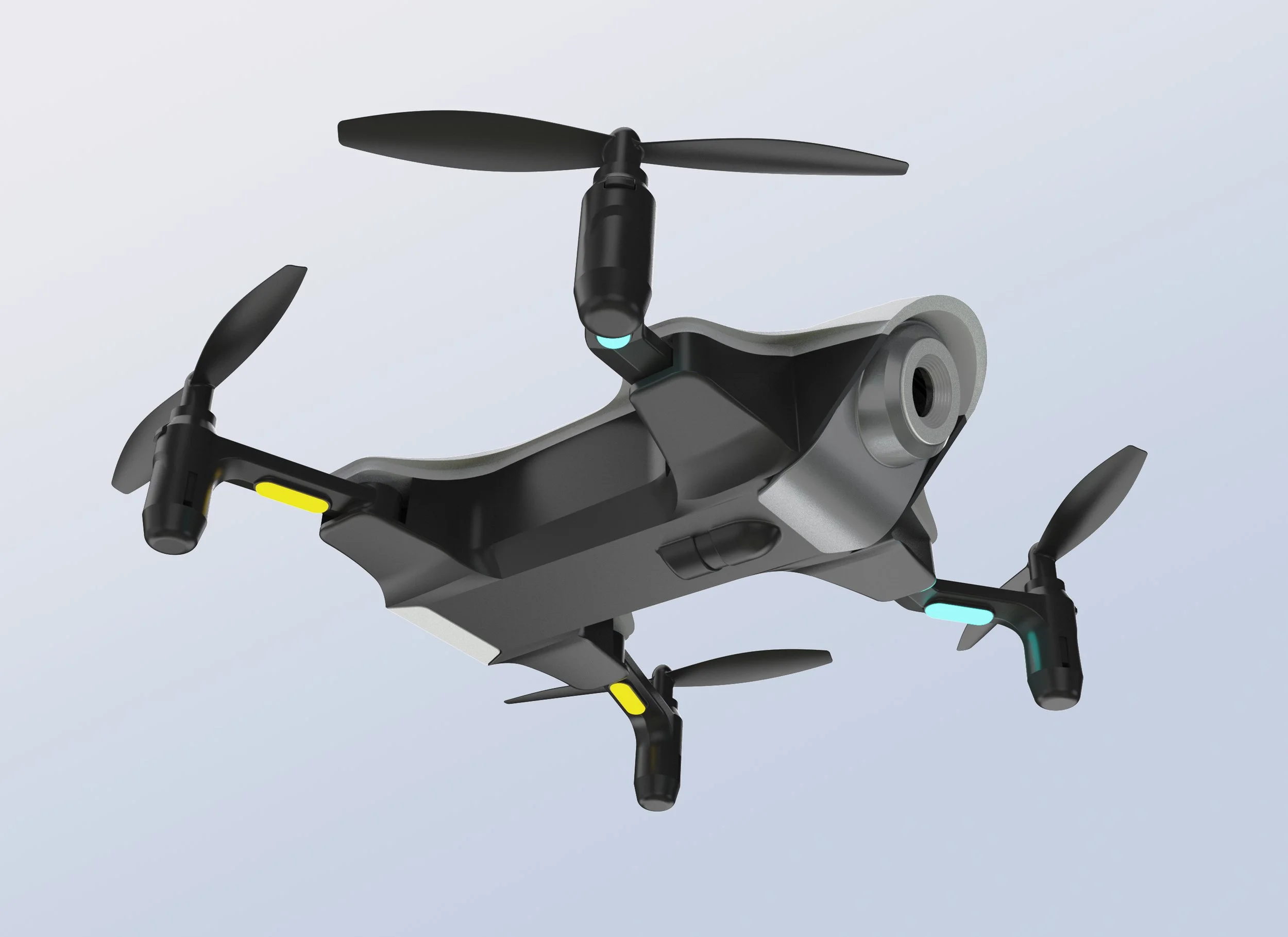

A modern black and gray quadcopter drone with four propellers flying against a light sky background.
A white and black selfie drone with four propellers, labeled PROTOCOL, with a camera mounted underneath, flying against a light blue sky.
A futuristic robotic device with a sleek design, featuring two black mechanical arms with propellers on each side, labeled 'Protocel,' against a plain blue background.

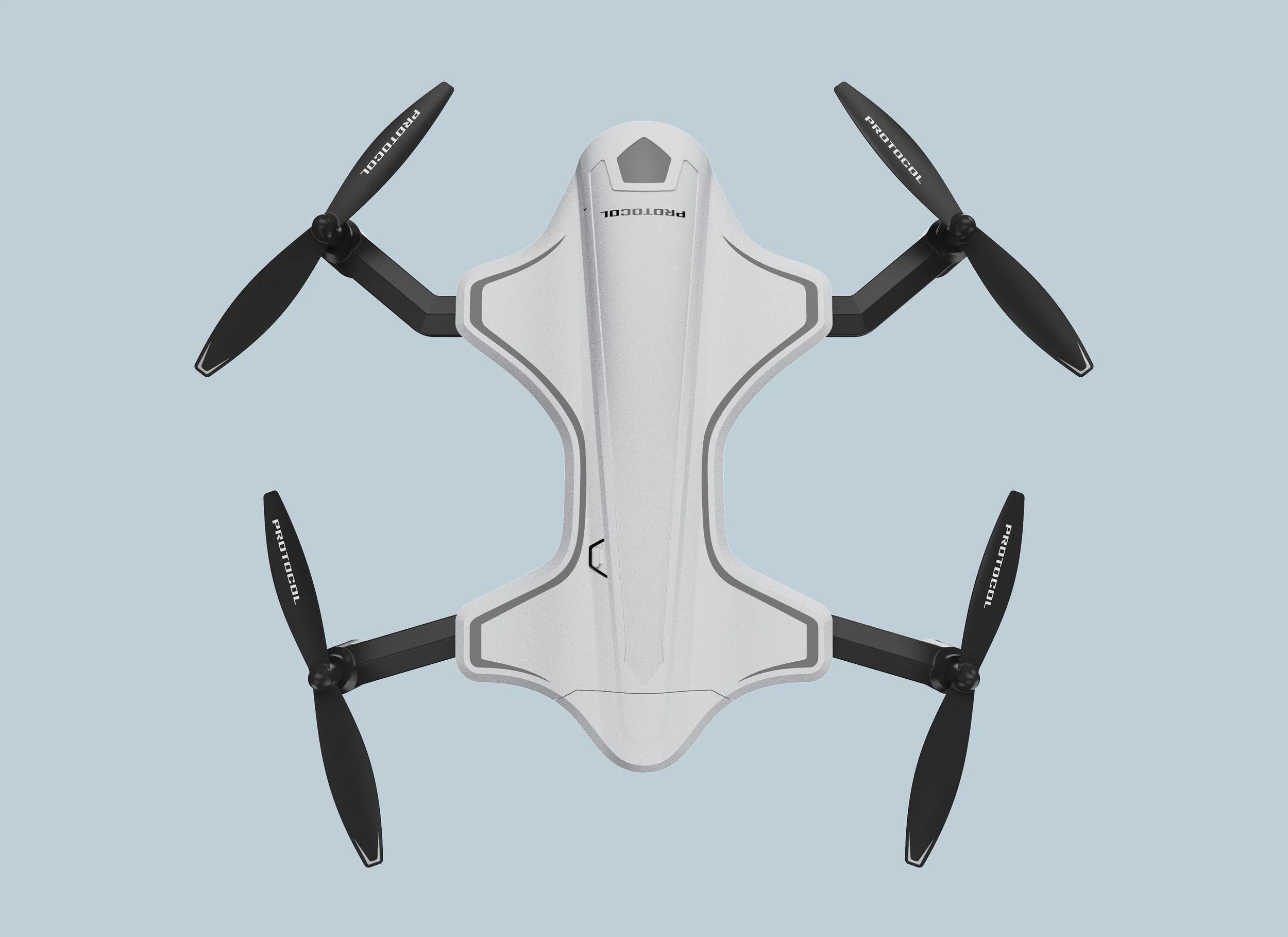

Top view of a white drone with four black propellers against a light blue background.

FEATURE

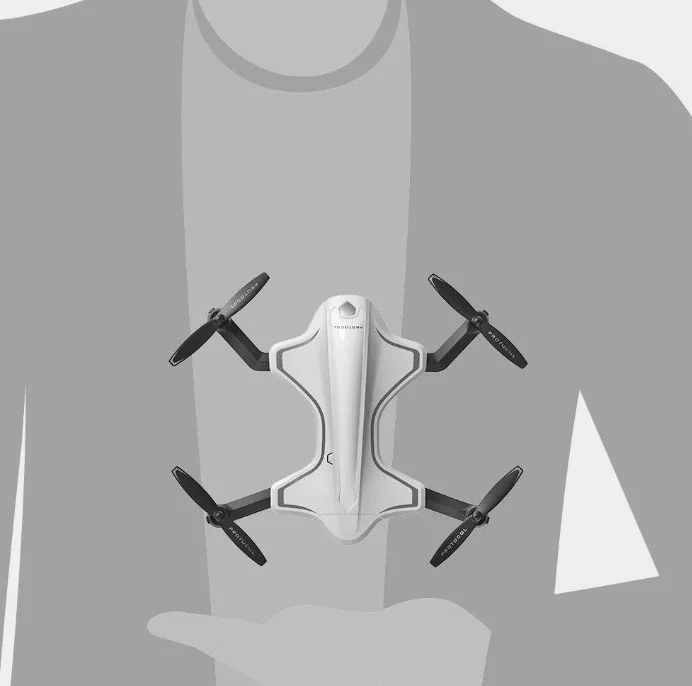

A person holding a white drone with four propellers.

COMPACT DESIGN
Folds down to 4.75 inches and extends to 9 inches (including blades) for easy portability.

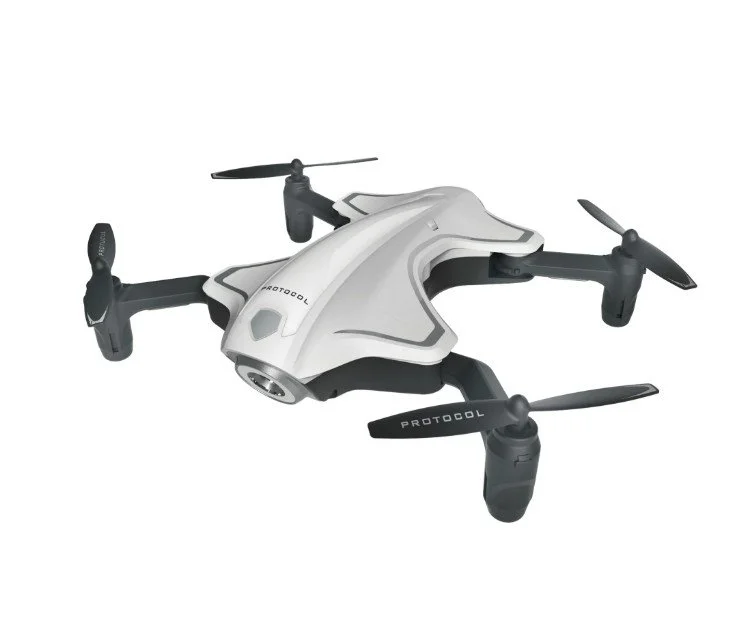

A white quadcopter drone with four propellers and a camera mounted underneath.

VERSATILE MOVEMENT
Maneuvers up/down, forward/backward, right/left, and side to side with three selectable speeds.

A black and white quadcopter drone with four propellers, two on each side, and a camera mounted underneath.

ADVANCED CONTROLS
Features auto launch, hover, and land with an altitude sensor for effortless flying.

A person controlling a drone with a smartphone, with the drone flying above and the phone displaying a photo of a dog.

STABILIZATION
Equipped with 6-axis motion-sensitive auto stabilizers for smooth flight.

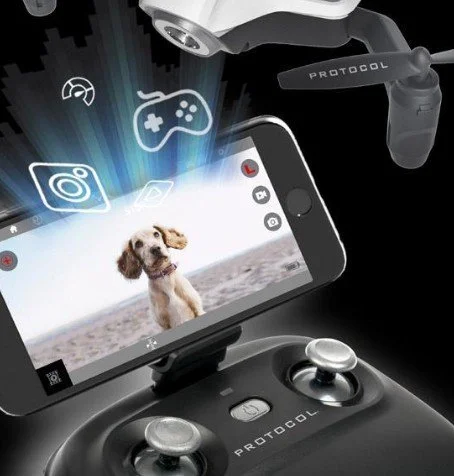

A drone controller with a smartphone attached showing a picture of a dog on the screen. The drone is hovering above, and the screen displays icons for video, photos, and social media.

CAMERA FEATURES
Includes 3 cameras for aerial, POV, and selfie shots, with live streaming video capability and 480p resolution.

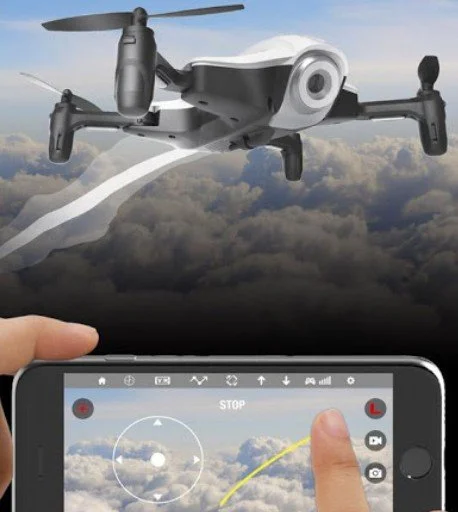

A drone flying in the sky above clouds, with a person's hand operating a smartphone with drone control app.

APP INTEGRATION
Fly using a free smartphone app, draw flight paths on screen, and enjoy VR capability (VR goggles sold separately).

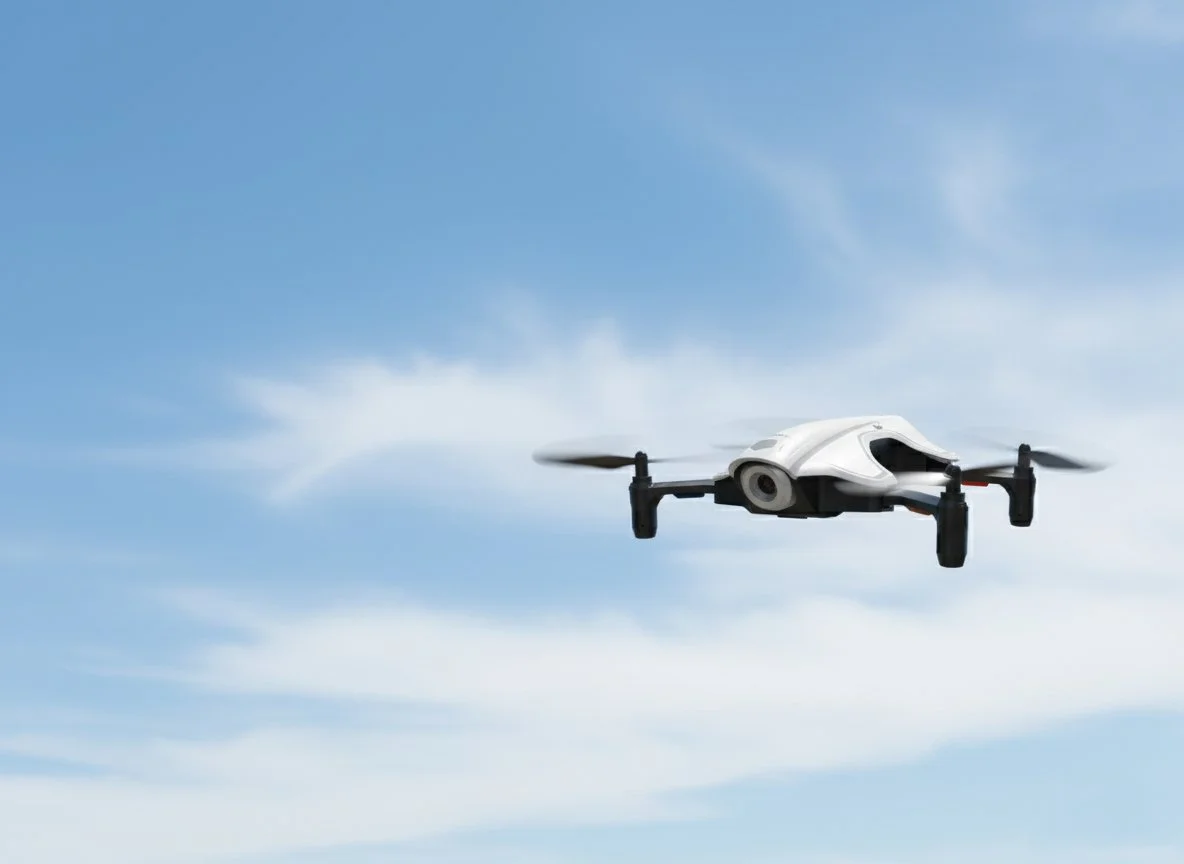

A white drone flying in a clear blue sky with some clouds.

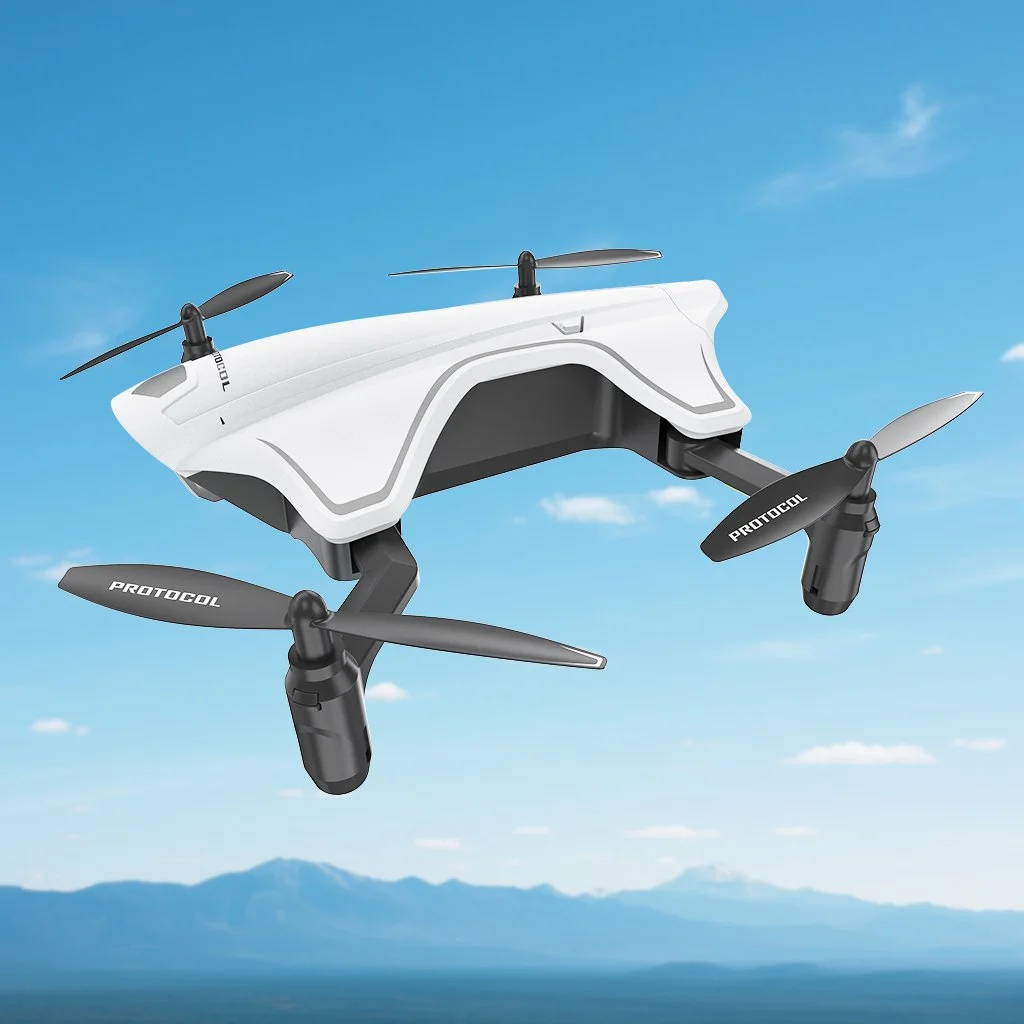

A white quadcopter drone with four propellers flying in the sky with mountains in the background.

CONTRIBUTION TO PROTOCOL DRONE PORTFOLIO

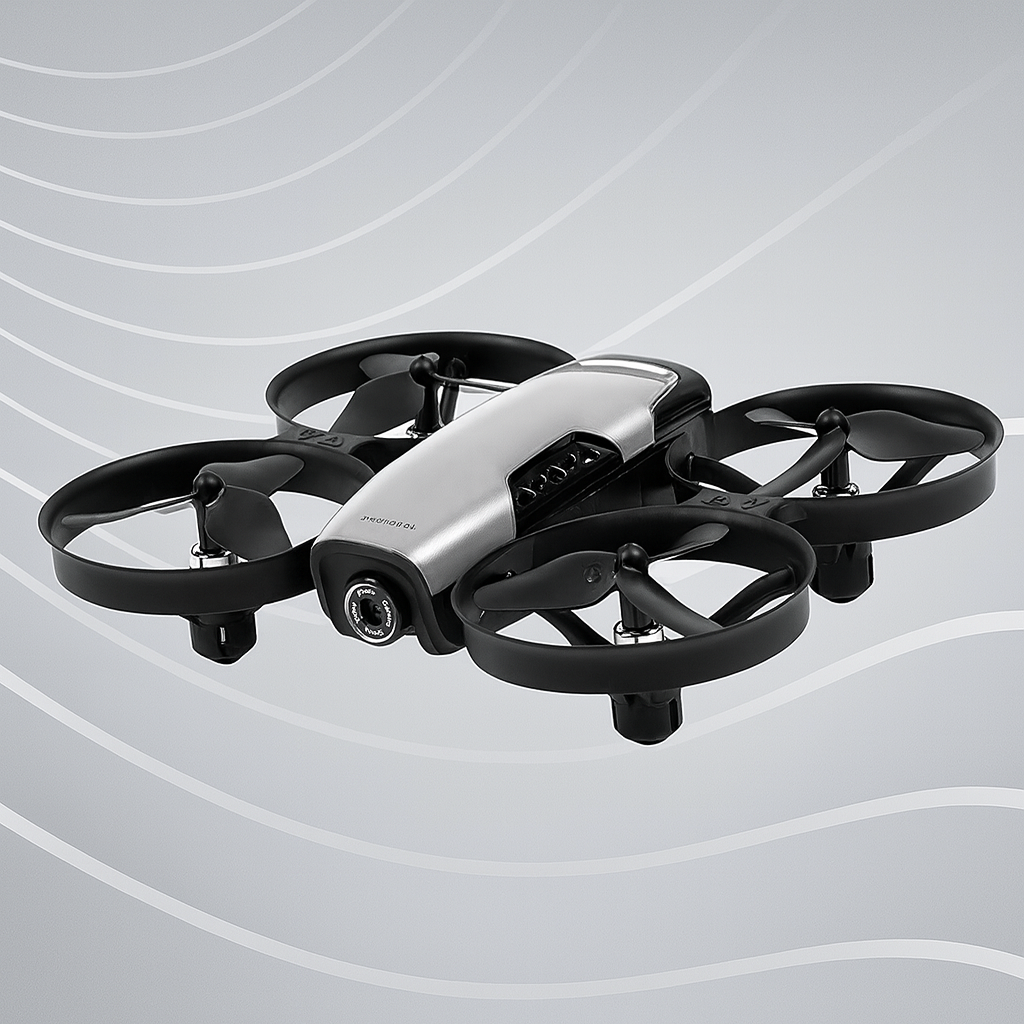

A compact quadcopter drone with four propellers, a camera at the front, and a sleek silver and black design on a light grey background.

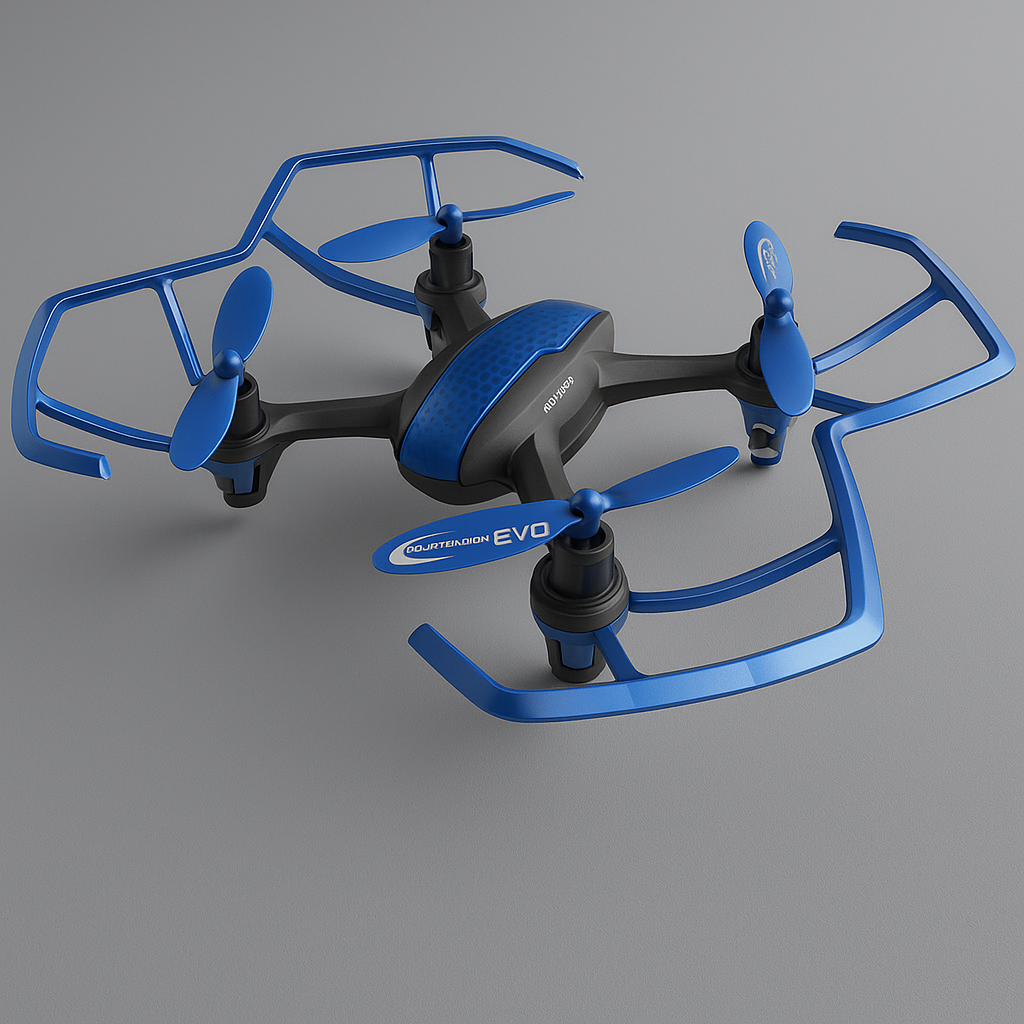

A blue and black drone with four propellers, resting on a gray surface.

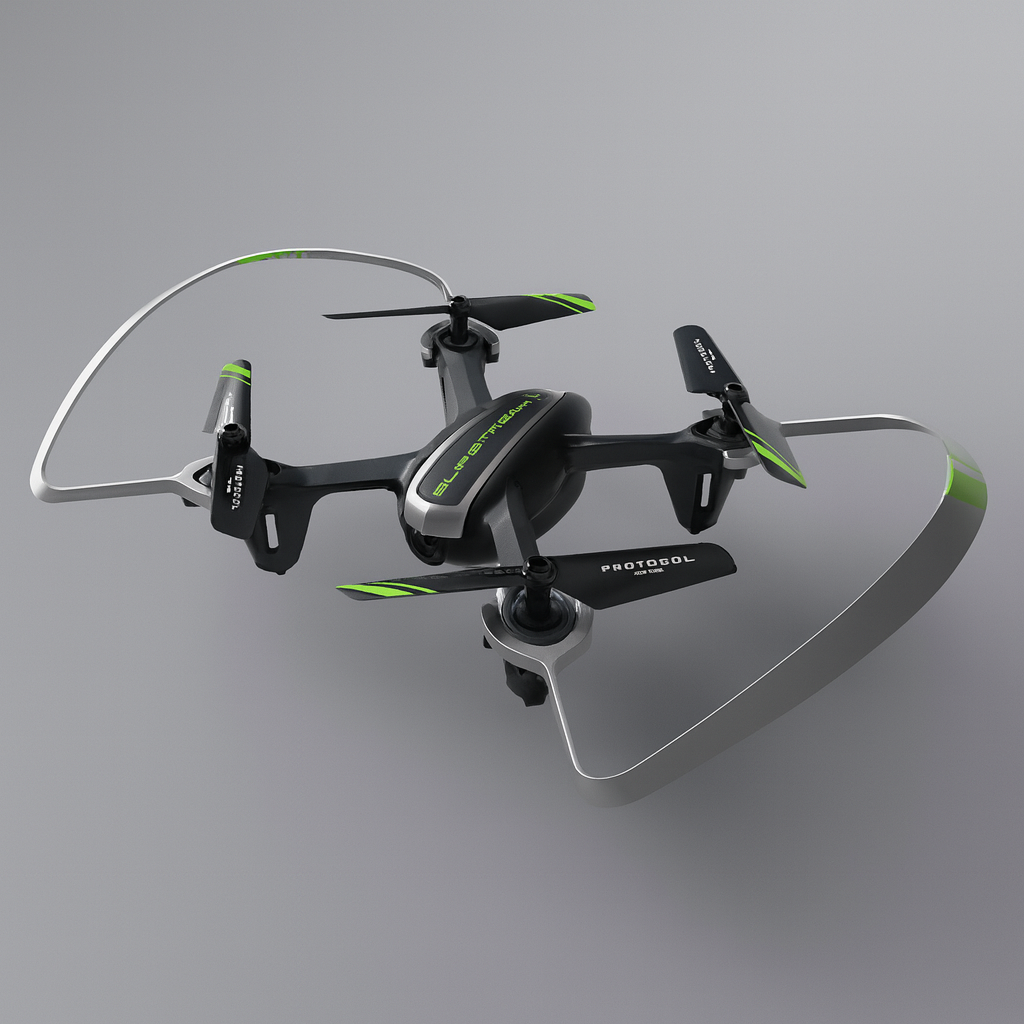

A black and green drone with a camera on the underside, four propellers, and protective frames on each rotor.

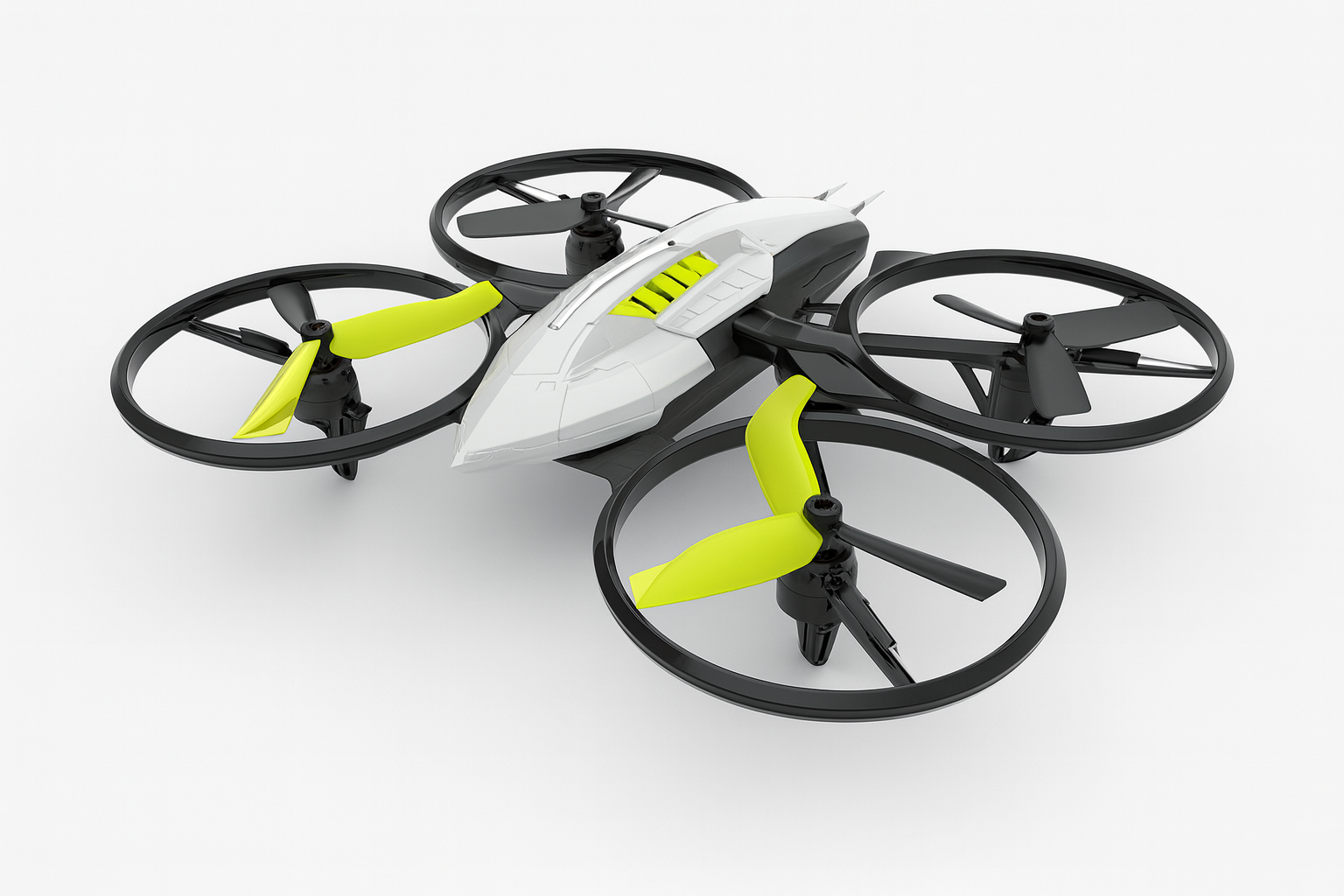

A yellow and white quadcopter drone with four black propellers and circular safety guards on a white surface.
