UV-C MINI STERILIZER PLUS

Kills 99.9% of Germs on Pacifiers in 59 Seconds

Brand: Munchkin
Launch: 2021

“Making the UV-C Mini Sterilizer even better.”

Strategic Challenge: Munchkin needed to defend market share in sterilization category while addressing critical user feedback threatening product viability.

My Leadership Role: Coordinated cross-functional teams across engineering, marketing, and manufacturing to deliver next-generation product under aggressive timeline and cost constraints.

Key Organizational Challenge: Balancing competing stakeholder priorities while maintaining design quality and market positioning.

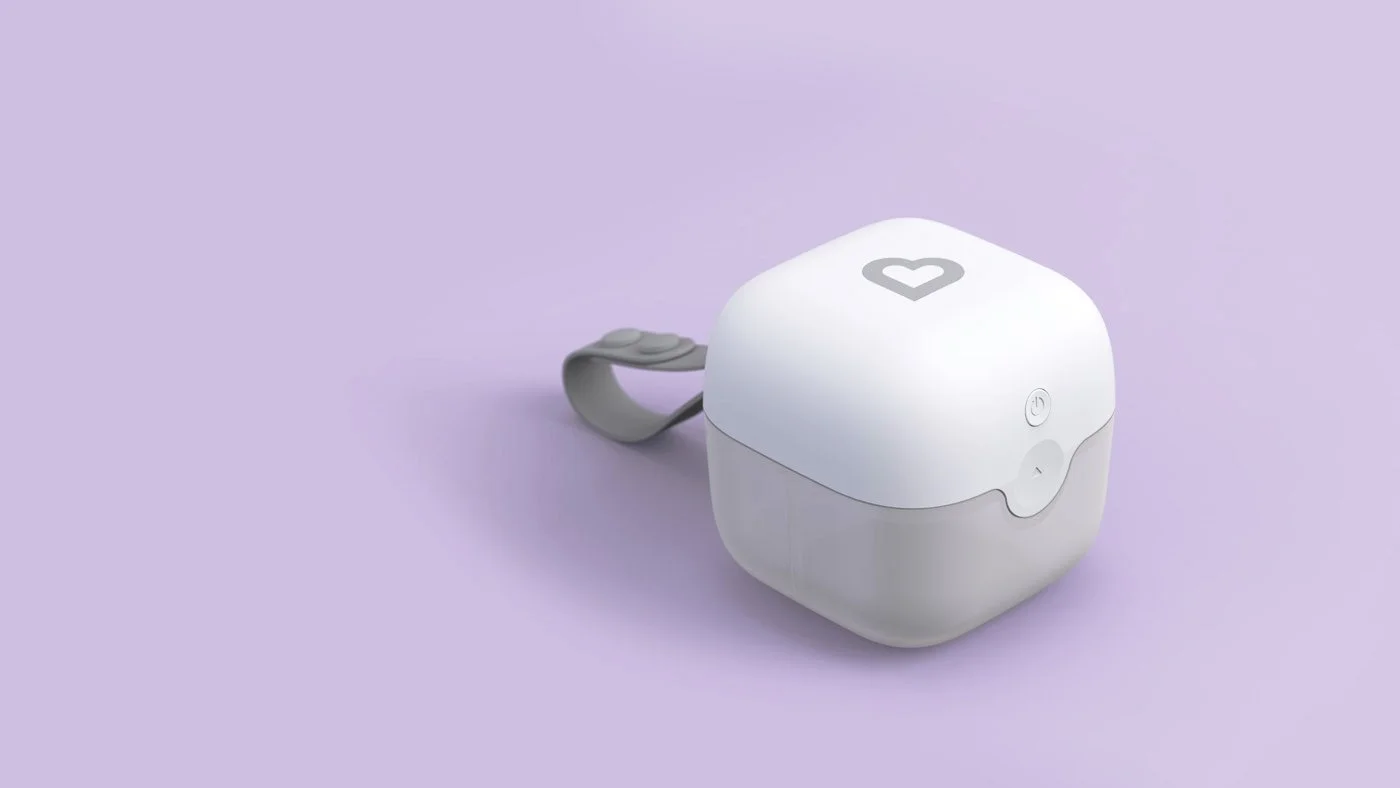

A white, rounded device with a loop strap and a gray heart symbol on top, placed on a light purple background.

INSIGHTS
(Based on the Previous-Gen Product)

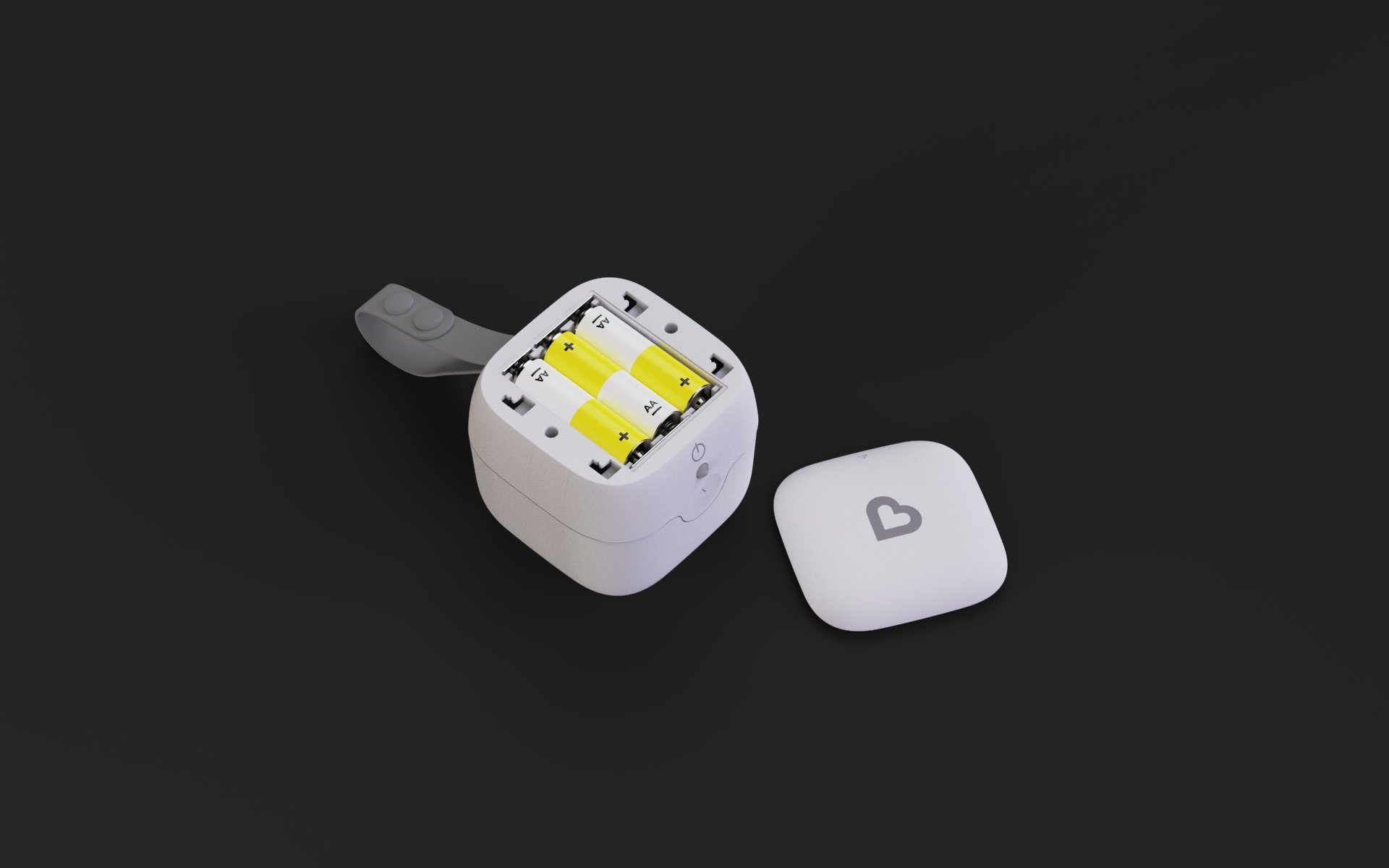

Open wireless blood glucose monitor showing batteries inside, with a white cover featuring a gray logo beside it on a black surface.

“I THOUGHT THIS PRODUCT WAS RECHARGEABLE”

Consumers misunderstood the first generation product was supposed to be a rechargeable, but it required three AA batteries. Due to this confusion, some consumers left negative reviews online and returned the item.

Four yellow cylindrical batteries arranged in a cross on a dark, weathered wooden surface.

“BATTERIES ARE EXPENSIVE”

Replacement batteries are costly and inconvenient, and there is an unmet need to redesign and improve the product.

Person standing in front of an illuminated geometric light installation with layered square frames creating a tunnel effect.

“ I CAN’T TELL IF THIS IS ACTUALLY WORKING”

The first gen item had a poor user interface.
Consumers would like a way to “see that the UV lights are on and that sterilization is happening.

& PAIN POINTS

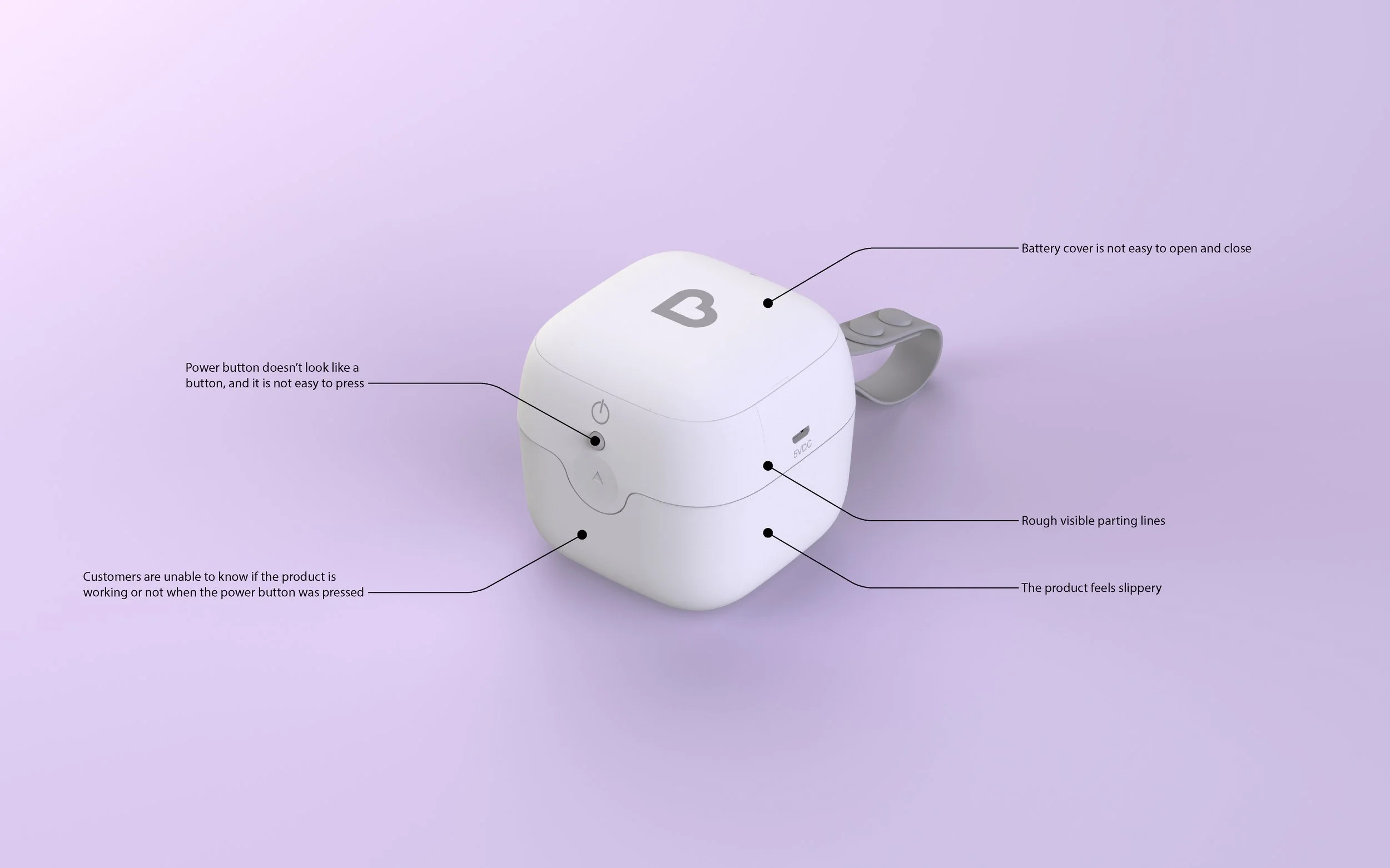

A white portable electronic device with a rounded square shape, labeled with various annotations, on a light purple background. The device has a large B logo on the top, a power button that doesn’t look like a button, a visible micro USB port, and a strap. Annotations indicate the battery cover is hard to open, the product feels slippery, the power button is hard to press, the product has rough visible parting lines, and customers can't tell if it’s working when the power button is pressed.

Visual Inspo

Balanced

Soft

Calming

Friendly

Muted

Matte

Collection of white modern home decor and tech devices, including a humidifier, vase, air purifier, and decorative objects.

User Experience

Intuitive

Obvious

Practical

Proportional

Textured

Contrast

Collection of various electronic devices and gadgets, including a mini keyboard with a large knob, a pair of controllers with a strap, a tablet with a finger touching its screen, a circular remote, and a sleek gray device with buttons.

DEVELOPMENT

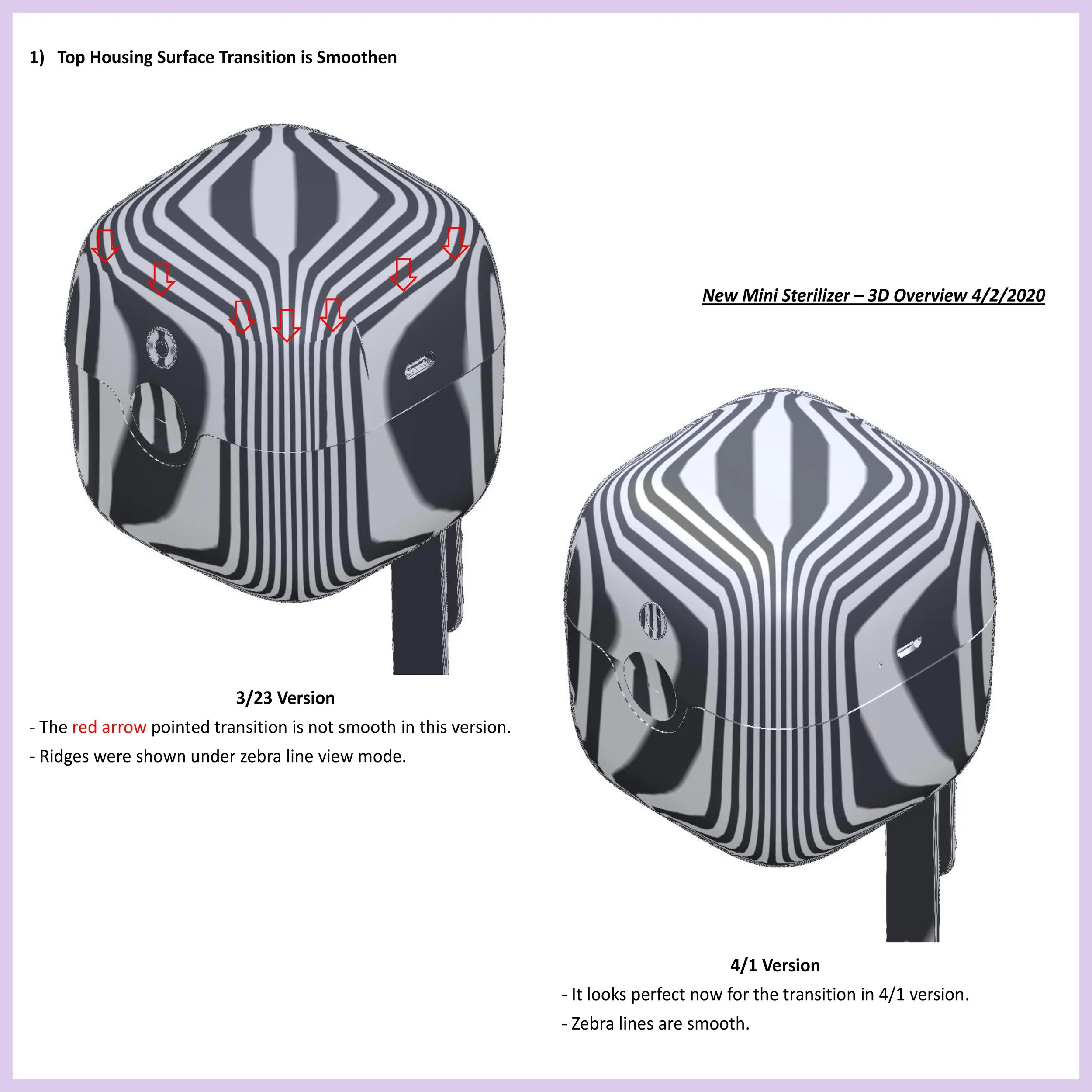

Diagram comparing two versions of a mini sterilizer with zebra stripe patterns, showing different transition smoothness and ridge details.

DESIGN FOR MANUFACTURING STRATEGY

Led surfacing and architecture decisions, coordinating with engineering to balance design intent with manufacturing constraints and cost targets.

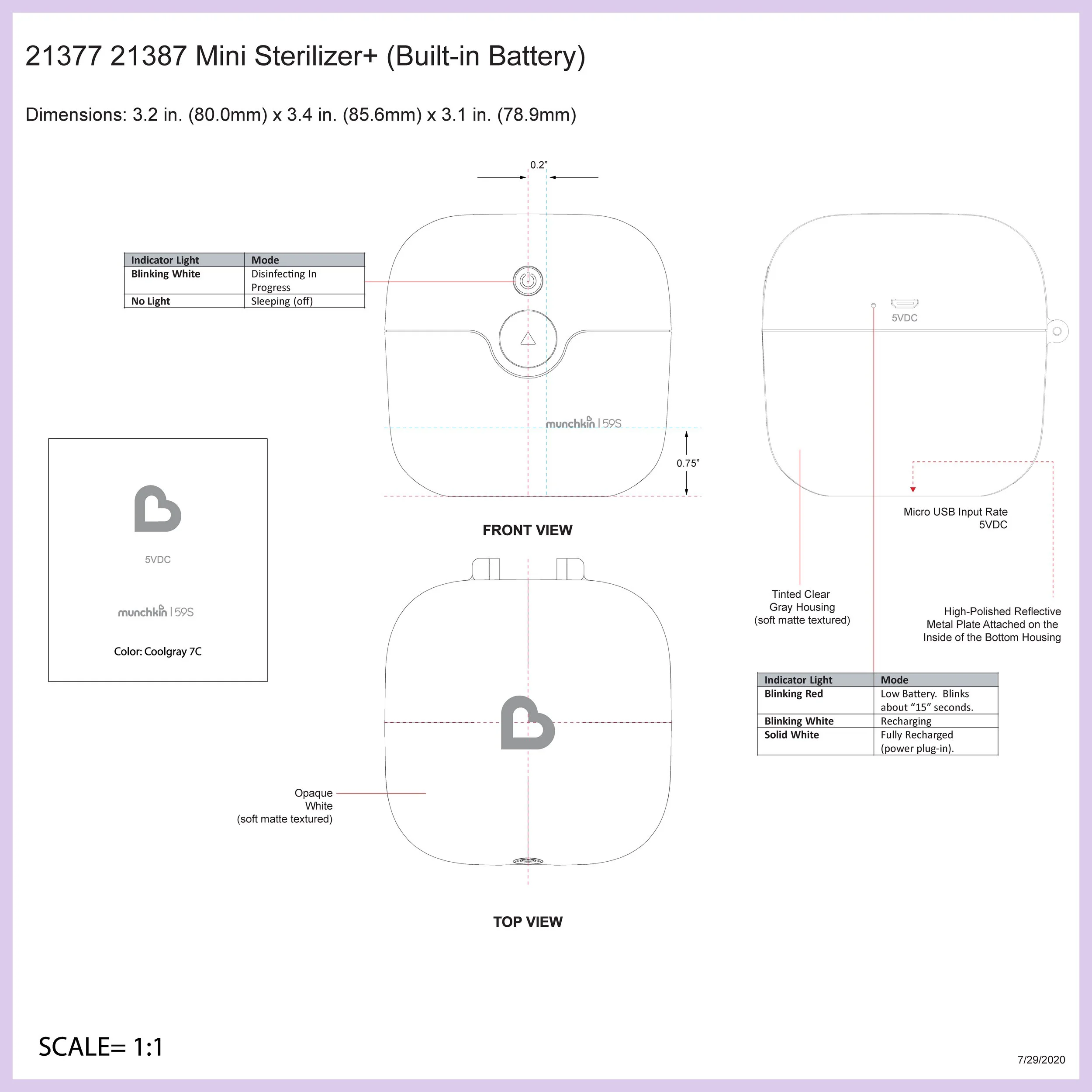

Technical diagram of a mini sterilizer with built-in battery, showing front, top, and back views. The diagram includes details about dimensions, indicator lights, and components such as a micro USB input rate, power switch, and reflective metal plate. The sterilizer is gray with soft matte textured surfaces and a gray 'B' logo.

CMF STRATEGY & COST OPTIMIZATION

Established material and finish standards that achieved premium aesthetics while meeting UV-C durability and cost requirements.

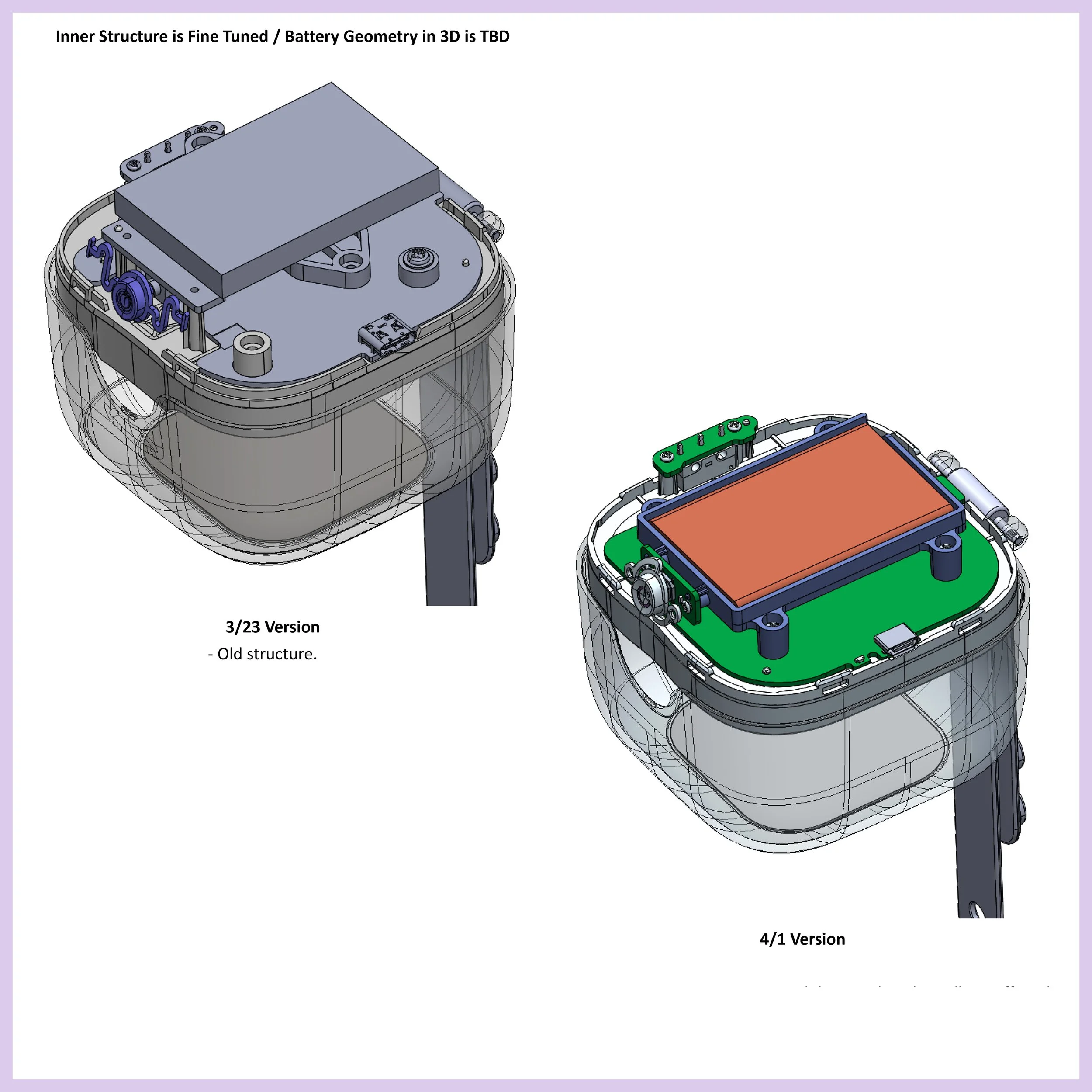

Comparison of old and new inner structures of a device, with the old structure on the left labeled "3/23 Version" and described as "Old structure," and the new structure on the right labeled "4/1 Version." Both structures show internal components with the new structure having a more organized layout. The diagram includes labels and color-coded parts for clarity.

CROSS-FUNCTIONAL ENGINEERING & VENDOR COORDINATION

Managed overseas engineering partnerships and vendor relationships to drive program from concept through tooling release.

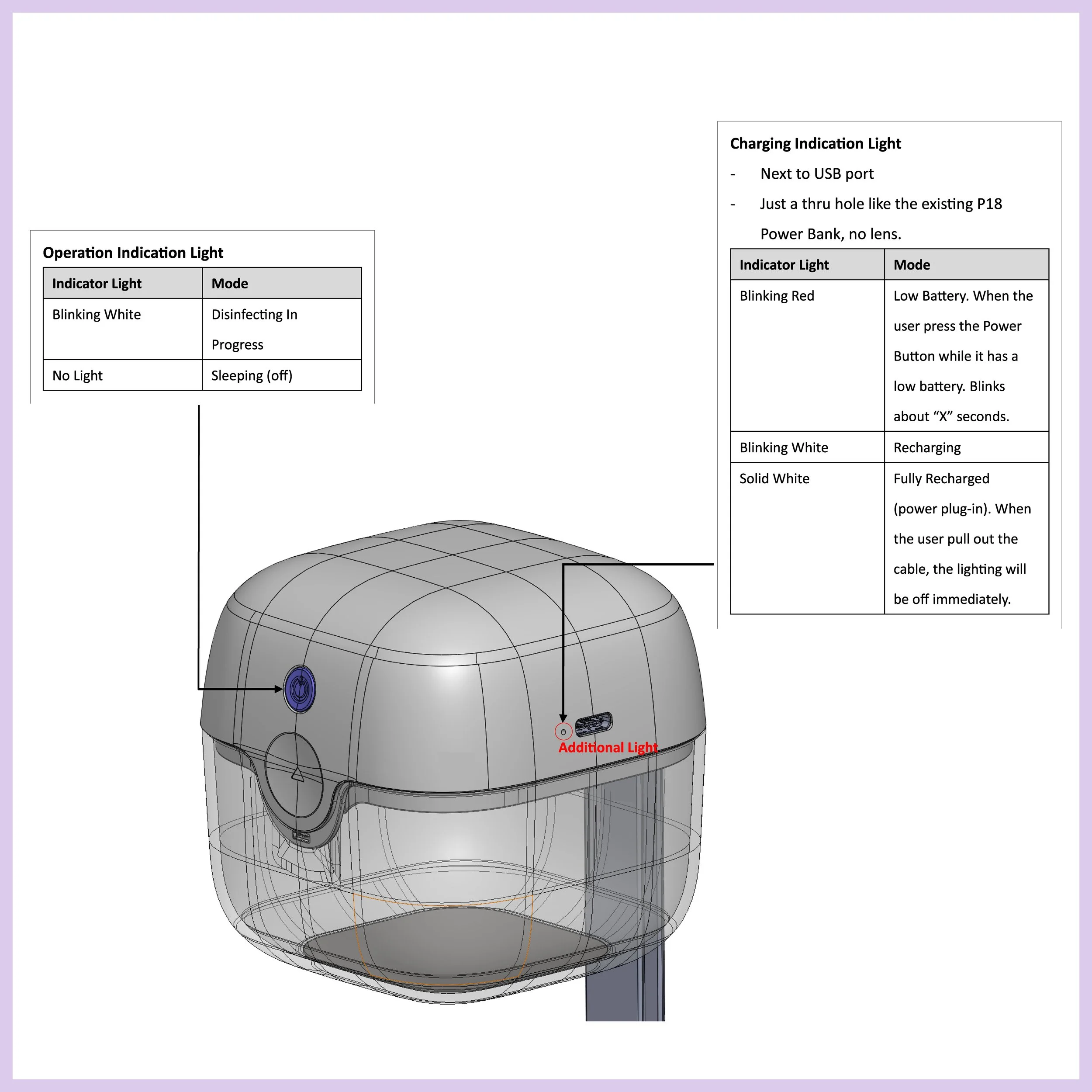

Diagram of a device with labeled indicator lights and operation instructions, including a main indicator light with modes for blinking white, no light, blinking red, blinking white, and solid white. There is an additional light marked in red.

SYSTEMS DESIGN & USER EXPERIENCE FRAMEWORK

Defined LED interaction logic and system states to resolve critical user confusion and improve product clarity.

Instructions for cleaning wireless earbuds, showing not to use with dirty items and how to properly insert earbuds into their charging case.

COMPLIANCE & TECHNICAL COMMUNICATION

Owned user manual development and safety communication to meet EPA/FDA requirements and reduce liability risks.

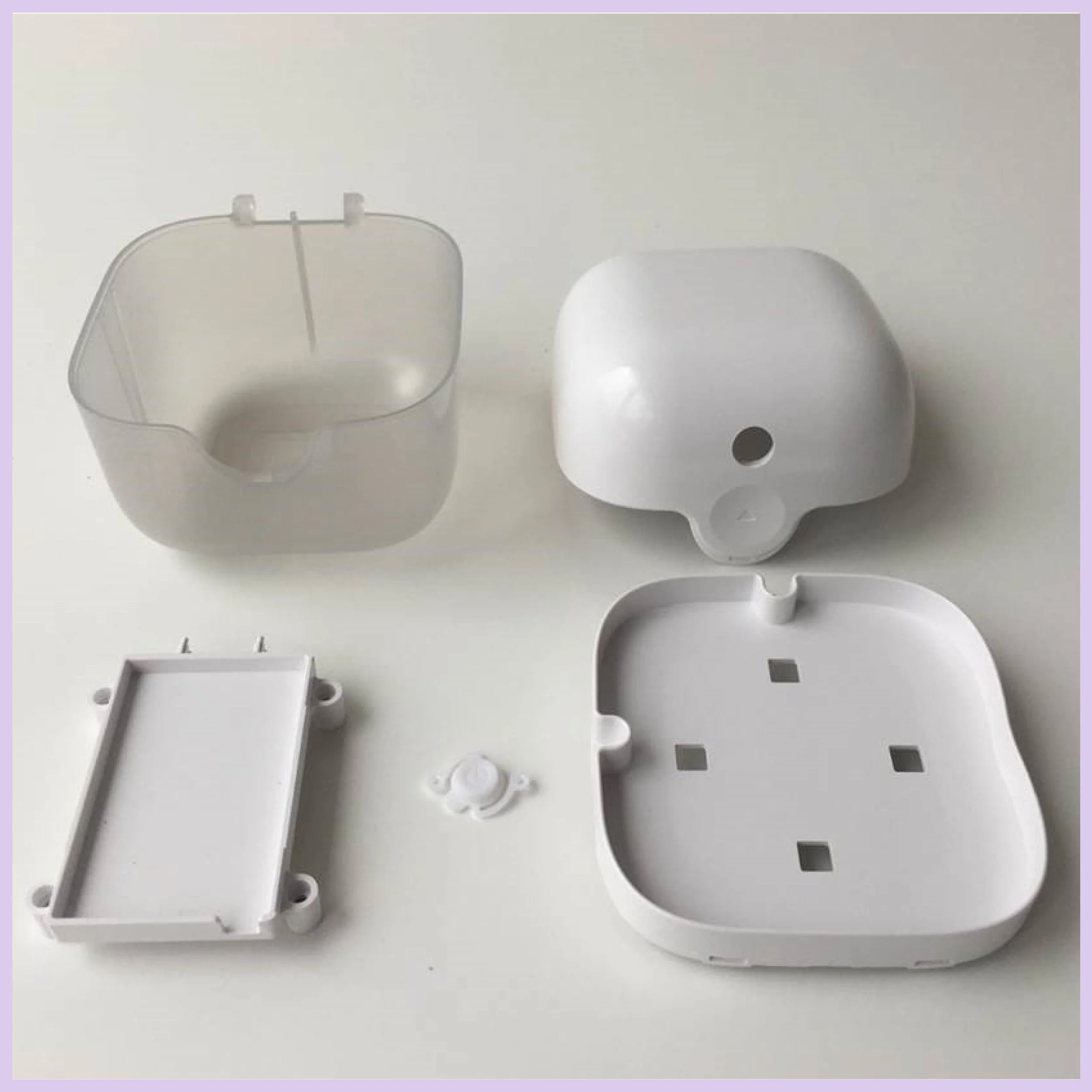

Disassembled white plastic electronic enclosure with various parts laid out on a white surface.

QUALITY ASSURANCE & PROTOTYPE MANAGEMENT

Directed prototype review process and quality criteria, leading cross-functional evaluation to ensure production readiness.

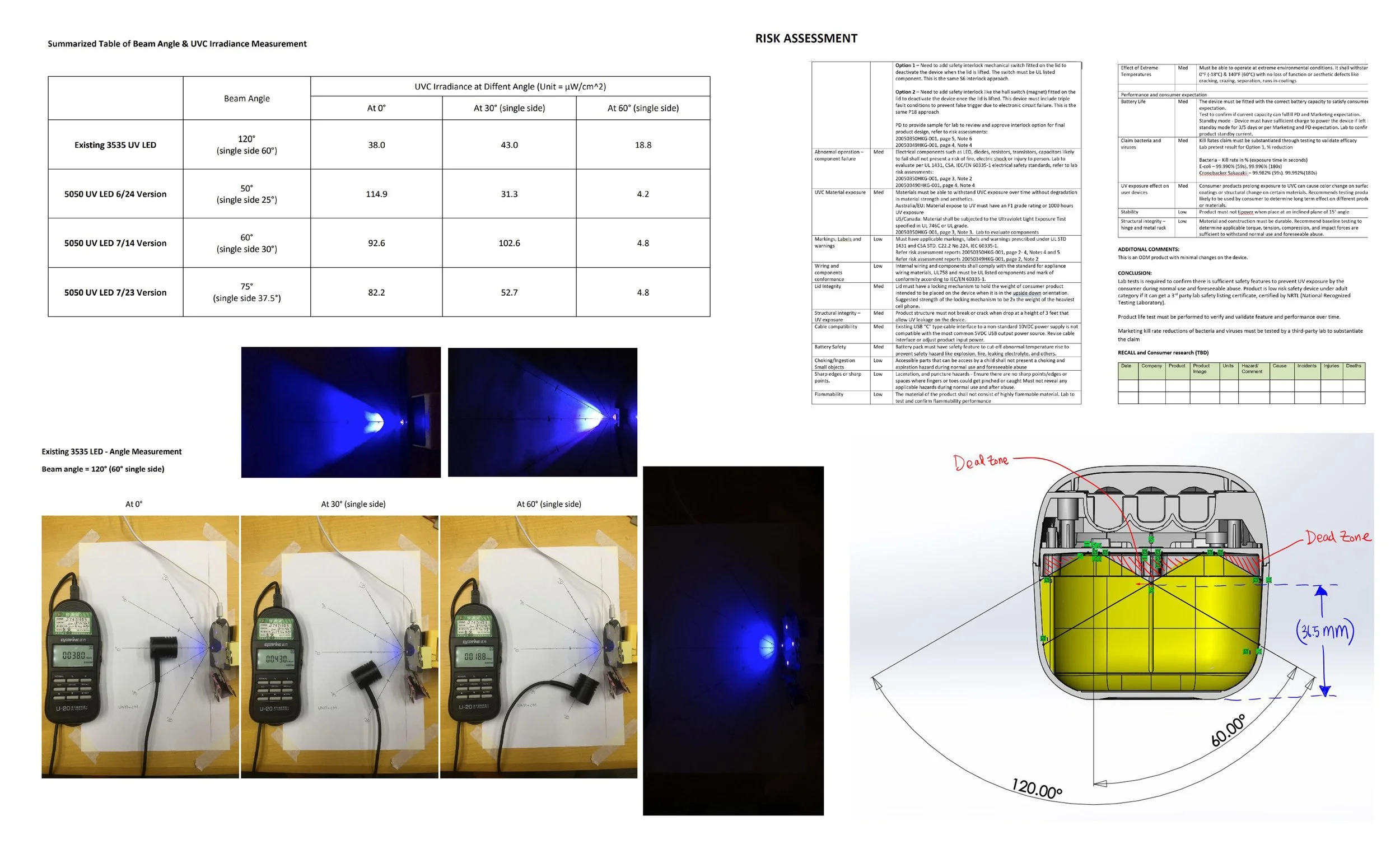

UVC LIGHT DISTRIBUTION & COVERAGE STUDY

  • Analyzed emission angles and intensity patterns across different UVC LED types to understand coverage distribution within the enclosure.

  • Mapped shadow zones and coverage gaps to inform LED placement and internal geometry, ensuring more consistent exposure across all surfaces.

  • Design decisions were driven by maximizing effective sterilization coverage while maintaining compact form factor and energy efficiency.

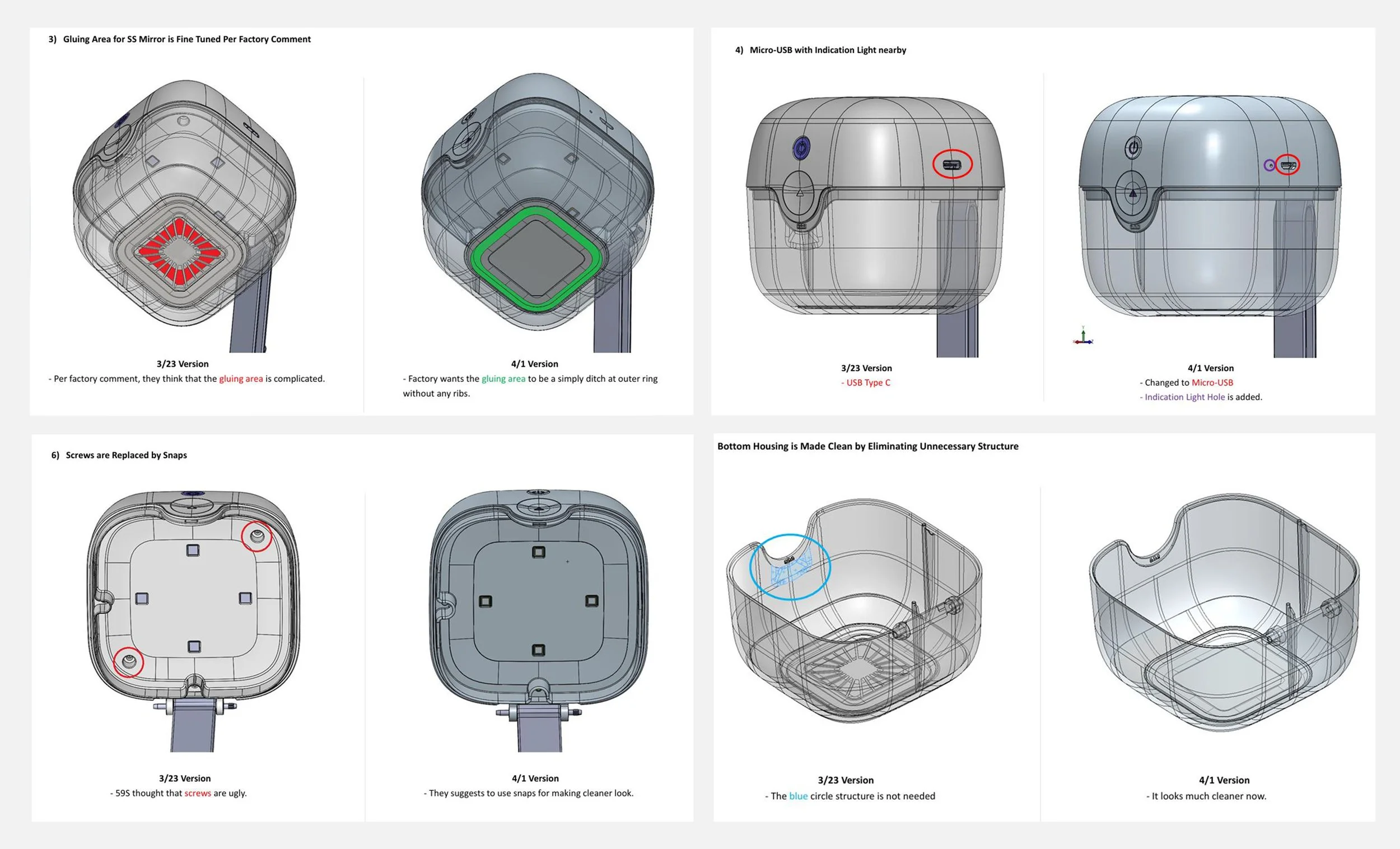

DESIGN REFINEMENT THROUGH ENGINEERING COLLABORATION

  • Following initial CAD handoff, worked closely with engineering to simplify internal structure and reduce unnecessary mechanical complexity.

  • Refined form and component integration to achieve a cleaner, more intuitive product expression while improving manufacturability.

  • Adjusted system details including power interface (USB-C to Micro USB), and introduced LED status indicators to clearly communicate power state and failure conditions to the user.

  • These refinements balanced usability, cost, and production constraints while improving overall product clarity and reliability.

BEFORE & AFTER

Two small white electronic devices with rounded edges sit on a purple background. The device on the left has a gray strap, a power button, and a heart-shaped logo on top. The device on the right, also with a gray strap, has a power button, a small slot, and a blue light glow from its bottom half.

FEATURE

A white ultrasonic diffuser with a graphic showing it emitting mist that kills germs and bacteria.

SAME KEY BENEFITS AS THE FIRST GEN PRODUCT

Safely neutralizes odor and eliminates 99.9% of the most common household germs including seasonal varieties in 59 seconds: sterilizers, pacifiers, teethers, and small items.

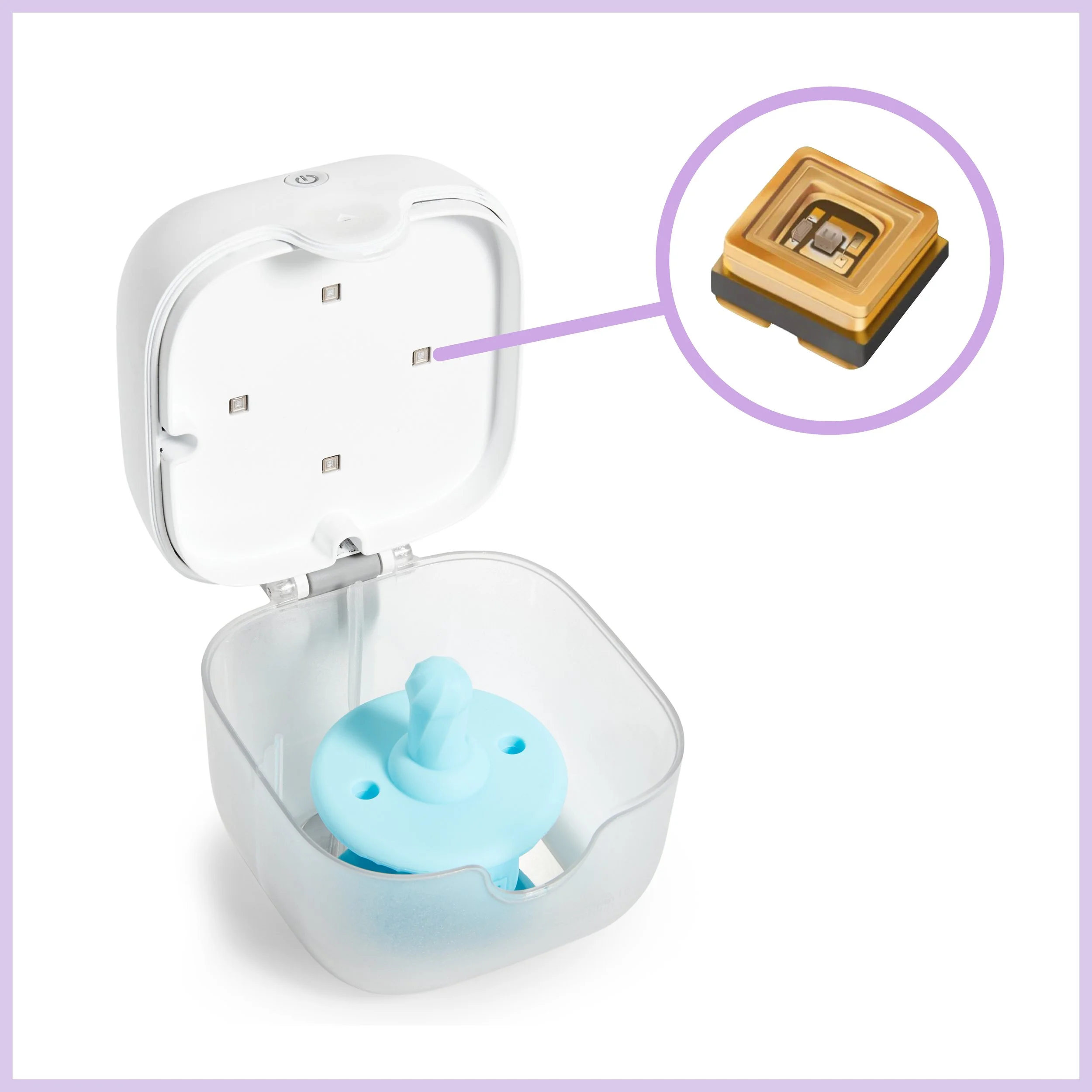

A baby orthodontic pacifier inside a white plastic container with a light purple border, shown with an illustration of a small, square, yellow and black sensor or electronic component connected by a purple line.

PROVEN UV-C TECHNOLOGY

Uses 4 gold-plated hospital-grade LED UV-C lights for over 3,000 hours of use.

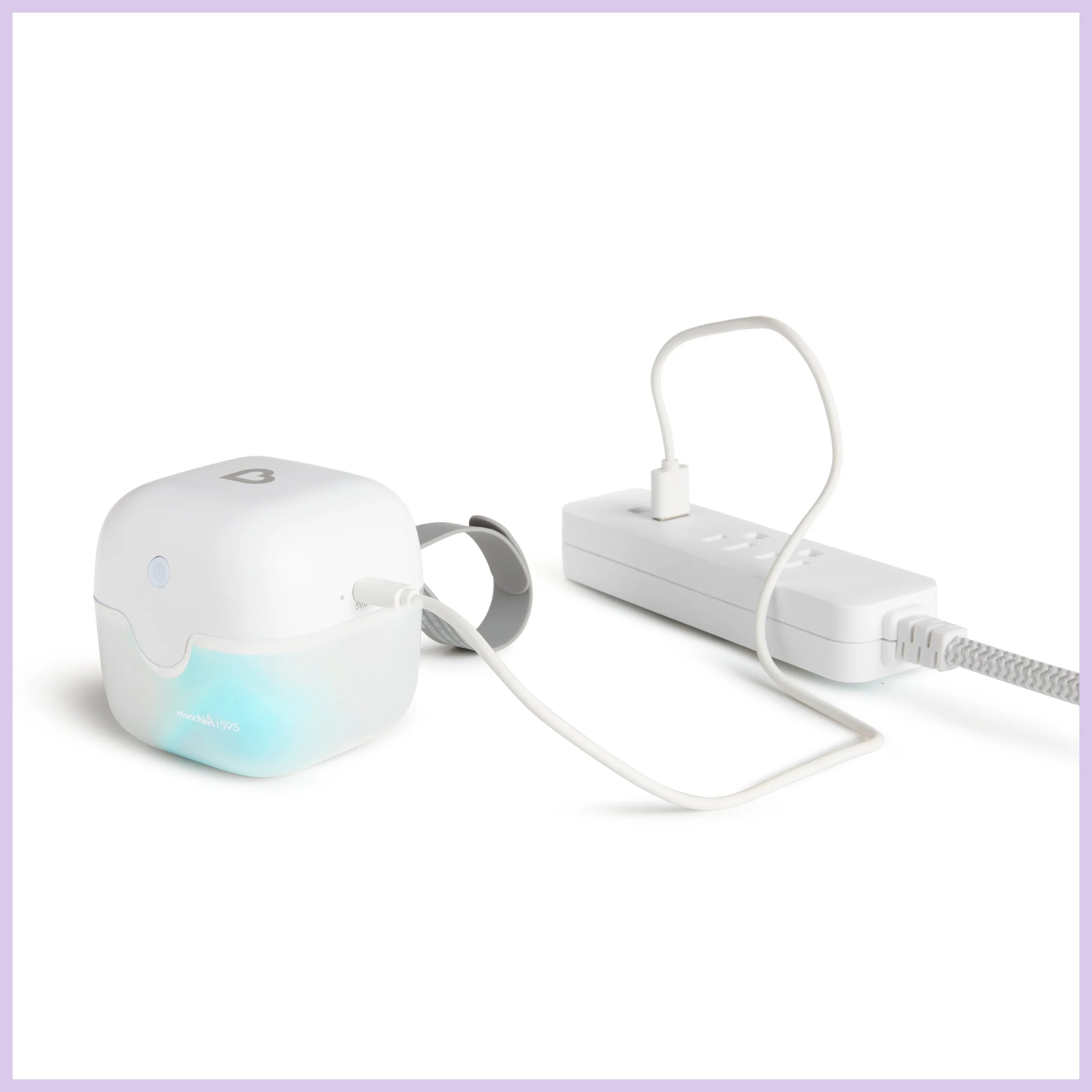

A white electronic device connected to a power strip with multiple outlets and a power cord, on a white background.

NO MORE BATTERY CONCERNS

Built-in rechargeable lithium-ion battery that can last approximately one week between charges and provides 100+ uses on a full charge.

A glowing blue and black Munchkin reusable wet/dry pet waste disposal bag dispenser with a power button symbol illuminated inside, set against a dark background.

UV CLEAN THAT YOU CAN SEE

Transparent bottom tray allows the consumers to see the product in action when powered on.

A woman in a purple sweater smiling while looking into a stroller

CHILD-SAFE. EPA & FDA REGISTERED

UV light auto shuts-off when the lid is opened and sanitized items are cool to the touch.

A healthcare worker wearing protective gear, including a white suit, mask, goggles, and blue gloves, holding a test tube with a blue liquid.

BACKED BY 3RD PARTY LAB TESTING

Proven to eliminate Staph. E coli, RSV, Salmonella, Kleb, Influenza (flu), Human Coronavirus (ATCC VR-740, Stain 229E), and other common germs.

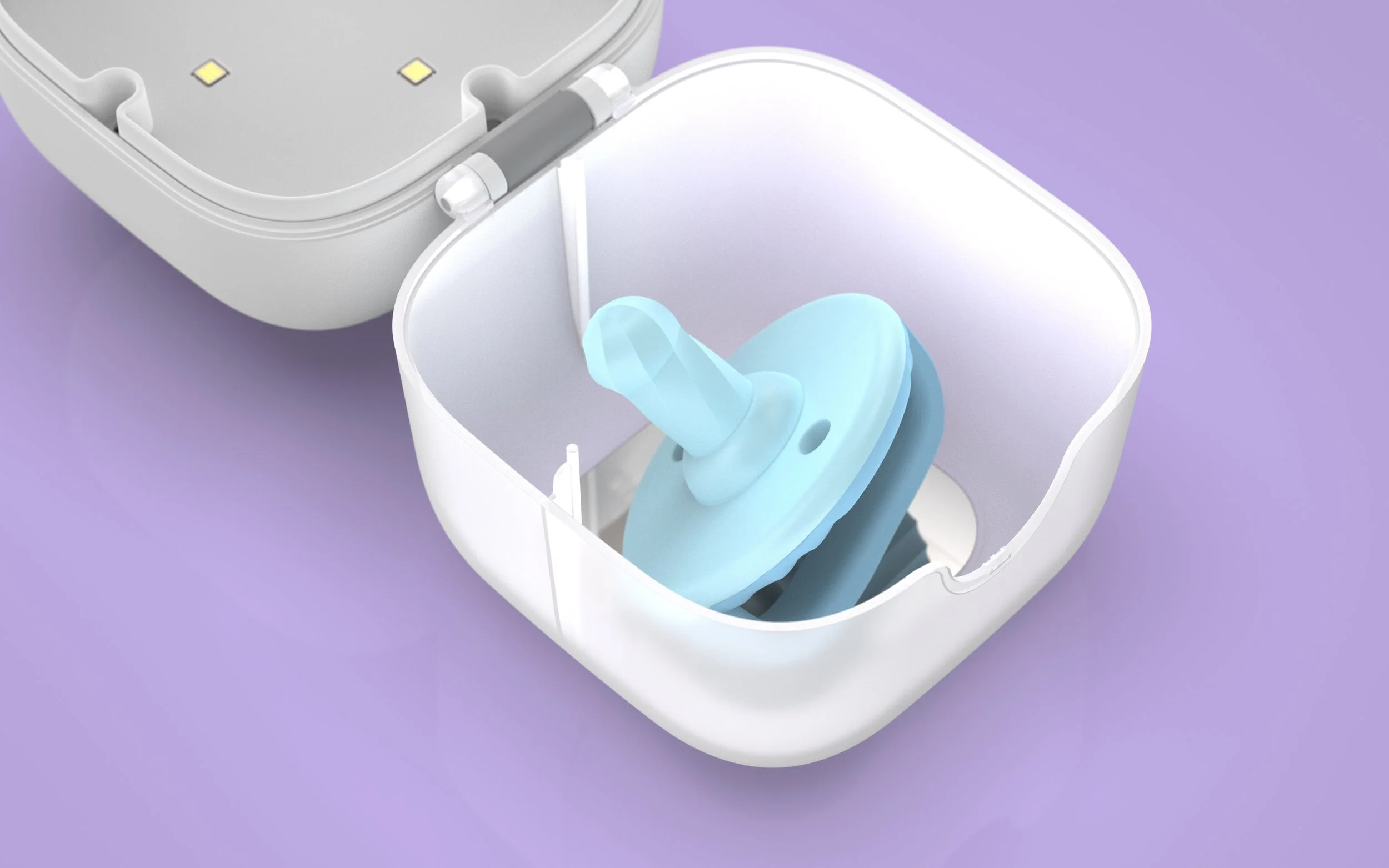

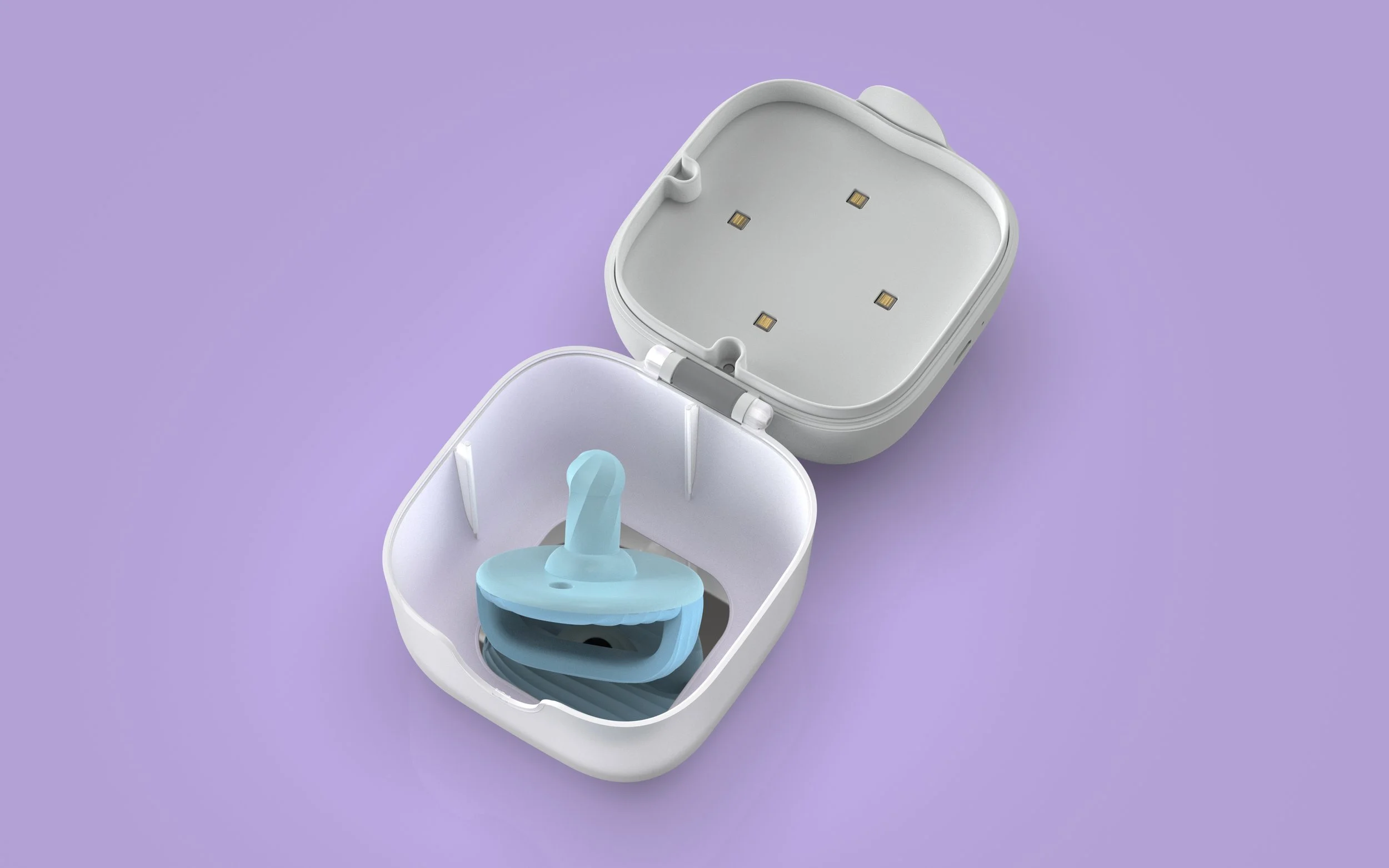

Close-up of an open baby pacifier case with a light blue pacifier inside, on a purple background.
Close-up of a blue hearing aid inside a white case, with the case lid open, against a purple background.
Exploded view of a robotic vacuum cleaner parts on a purple background

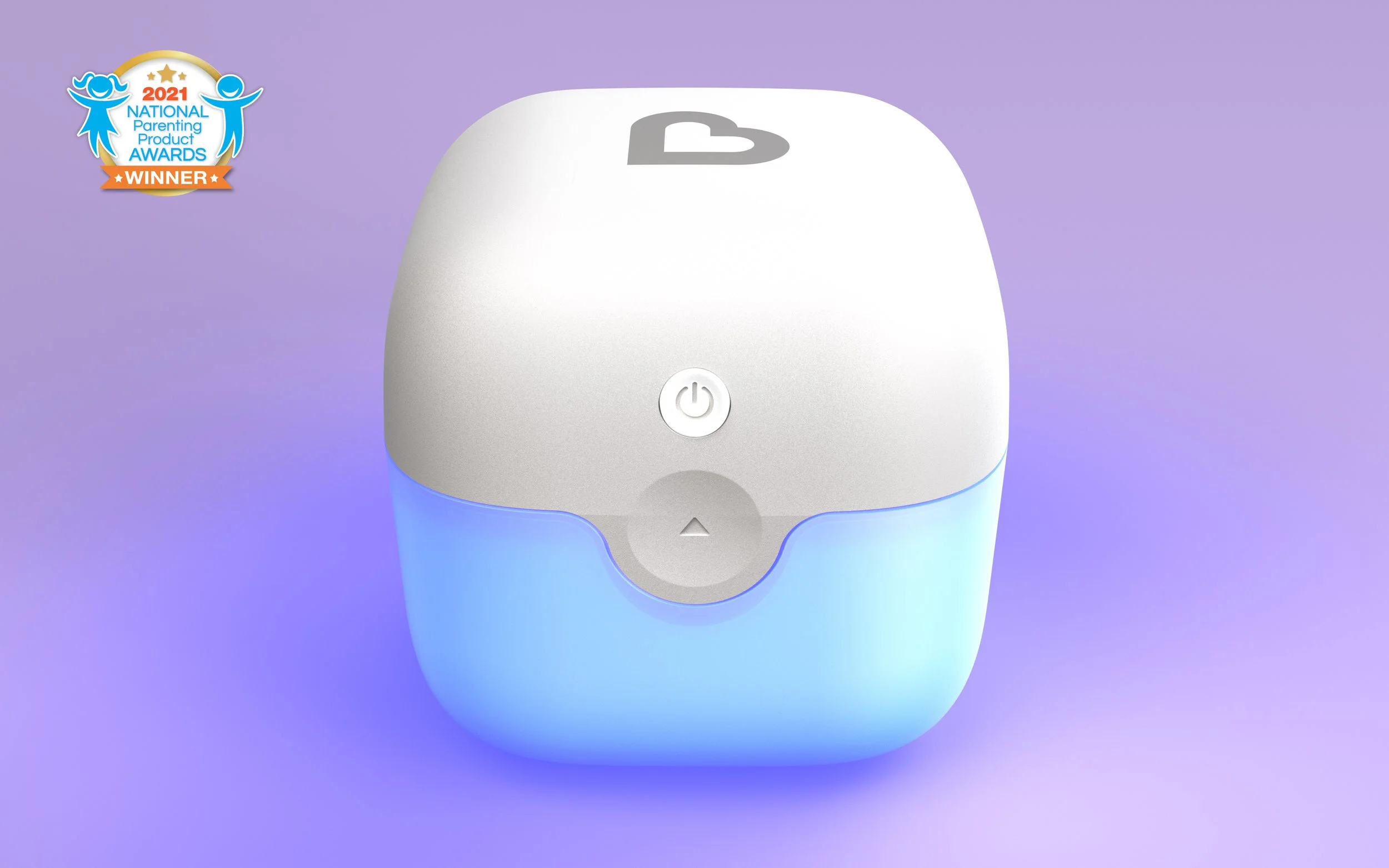

A white and blue electronic device with a power button and a wheel, topped with a gray heart symbol. The device has a soft glow and is set against a purple background. There is a 2021 award badge in the top left corner.

BUSINESS IMPACT

Delivered $5M+ first-year revenue contribution, received the 2021 National Parenting Product Awards and Top Sales recognition, and significantly reduced the primary customer complaint category related to usability and effectiveness.

ORGANIZATIONAL VALUE

Established a reusable UX and design framework that was adopted across subsequent sanitizer product lines, helping standardize usability principles and demonstrating measurable ROI of early-stage design investment to executive leadership.
